TP-LINK 300Mbps Wireless N Access Point
Get a Quote!



The TP-LINK Wireless N Access Point TL-WA801ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The APs support a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.

Wireless N Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Wireless N Speed & Range

Multiple Operating Modes - Easy to Build WLAN

Supports multiple operation modes (Access Point, Multi-SSID, Client, Universal/ WDS Repeater, Bridge with AP) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their AP. Multiple operating mode also helps you easily to build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Multiple Operating Modes - Easy to Build WLAN

Passive PoE Supported - More Flexible Deployment

The TL-WA801ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Passive PoE Supported - More Flexible Deployment


Instantly setup Wi-Fi connections simply by pressing the "WPS" button with Utility

Easy Setup
Easy Setup

A friendly user interface utility on a CD for simple installation


  • Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and voice over Internet
  • MIMO technology provides robust high-bandwidth wireless Tx/Rx capability at further range
  • CCA improves wireless performance while automatically avoiding channel conflict
  • Supports multiple operating modes (Access Point, Client, Universal/WDS Repeater, Point to Point, Point to Multi-point)
  • Easily setup a WPA encrypted secure connection at a push of the QSS button
  • Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming
  • Supports up to 30 meters (100 feet)of Power over Ethernet capability for flexible performance
  • Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated users
  • WPA/WPA2 encryptions provide your network with active defense against security threats
  • Backward compatible with 802.11b/g products
  • External detachable antennas allow for better alignment and stronger antenna upgrades
  • Wall mounted available, also can be placed horizontally on a table or desk

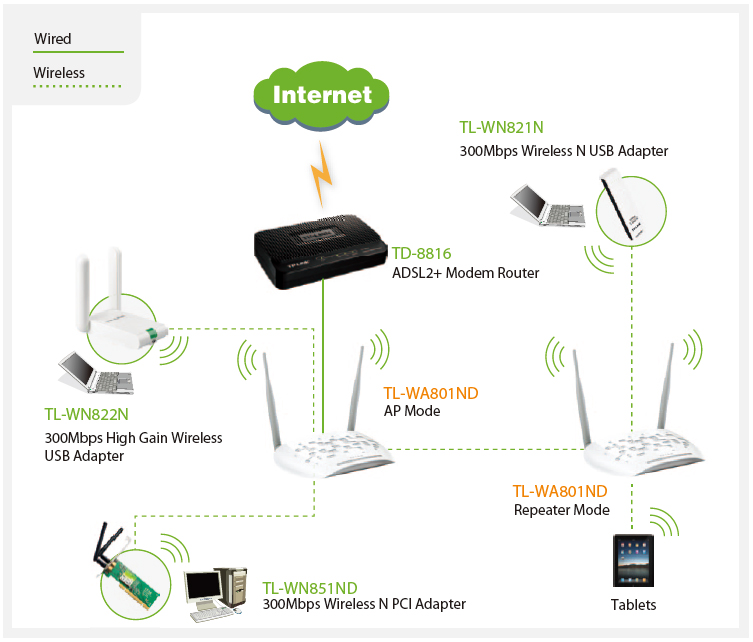

TL-WA801ND Diagram


TL-WA801ND Specifications
Hardware Features
  • One 10/100M Ethernet Port (RJ45)
  • Support Passive PoE
  • Power On/Off Button
  • WPS Button
  • Reset Button
External Power Supply 9VDC / 0.85A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions (W x D x H) 7.1 x 4.9 x 1.4 in. (181 x 125 x 36mm)
Antenna Type 2 x 5dBi Detachable Omni Directional (RP-SMA)
Wireless Features
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n: Up to 450Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
Reception Sensitivity
  • 270M: -68dBm@10% PER
  • 130M: -68dBm@10% PER
  • 108M: -68dBm@10% PER
  • 54M: -68dBm@10% PER
  • 11M: -85dBm@8% PER
  • 6M: -88dBm@10% PER
  • 1M: -90dBm@8% PER
Wireless Modes
  • AP Mode
  • Multi-SSID Mode
  • Client Mode
  • Repeater Mode (WDS/Universal)
  • Bridge with AP Mode
Wireless Functions
  • Enable/Disable Wireless Radio
  • WDS Bridge
  • MAC Address Filter
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Transmission Power <20dBm (EIRP)
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters PoE is supported
Certification CE, FCC, RoHS
Package Contents
  • Wireless Access Point
  • 2 Detachable Omni directional antennas
  • Power Supply Unit
  • PoE Power Injector
  • Resource CD
  • Quick Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

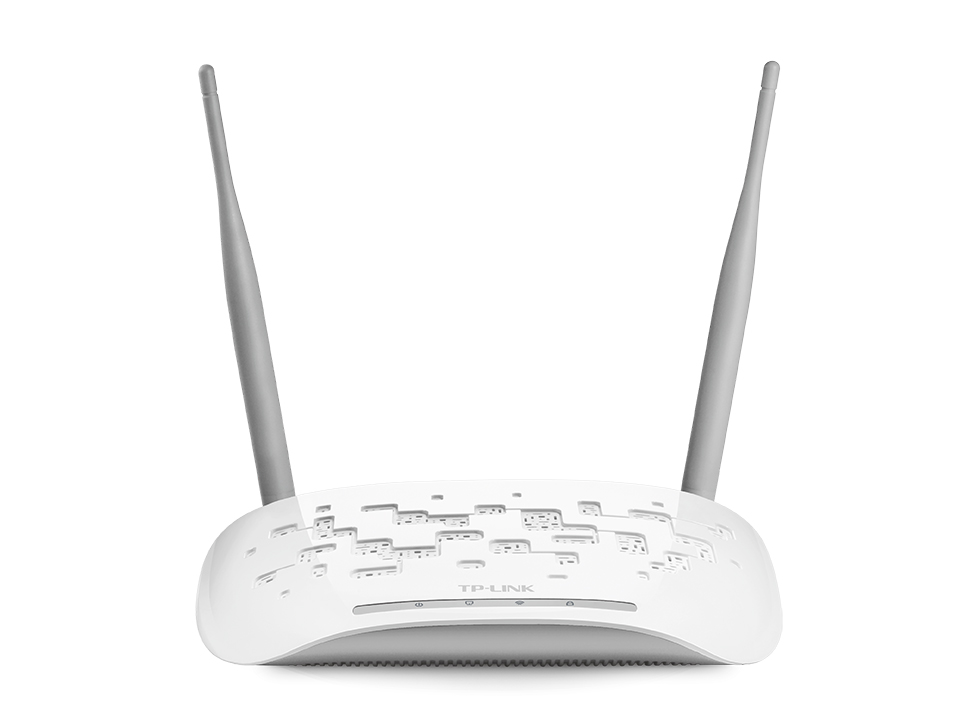

Front View
Front View

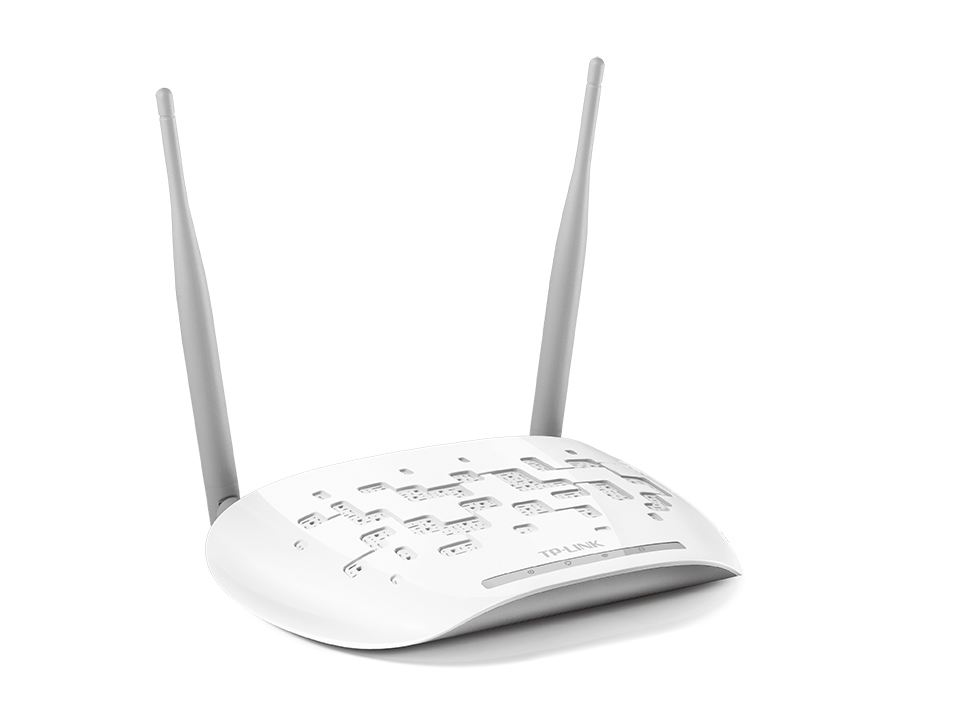

Right Angle View
Right Angle View

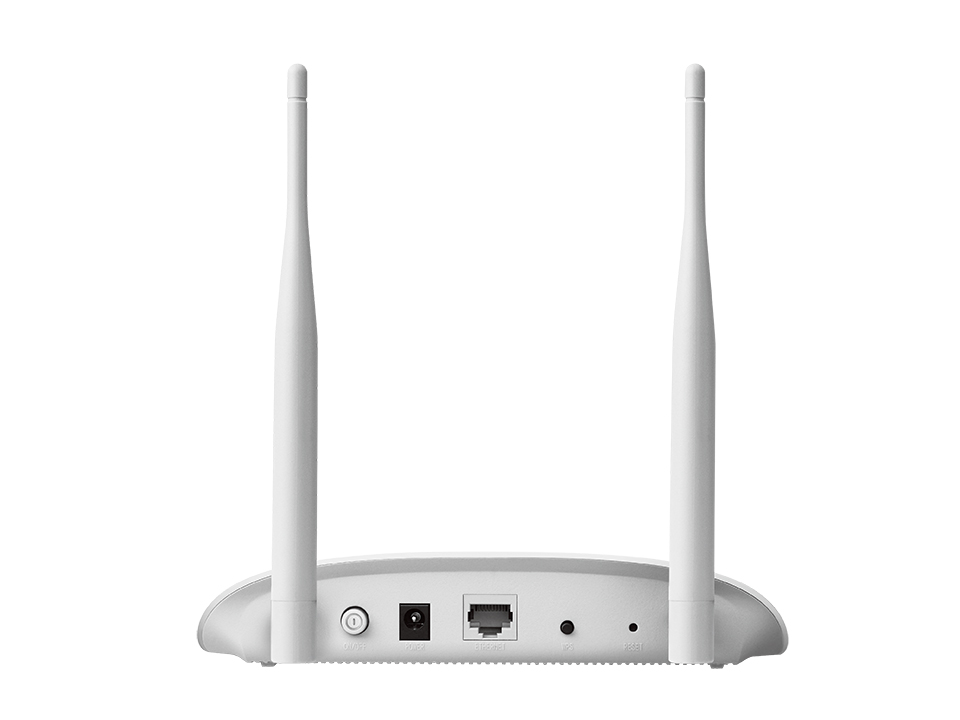

Rear View
Rear View
Package View
Package View


Speed Up to 150 Mbps Up to 300 Mbps Up to 300 Mbps
Range Good Better Best
Wireless N
Easy Setup
Number/Type of Antenna(s) 1 x 5dBi 2 x 5dBi 3 x 4dBi
Detachable Antenna(s)
Multiple Operating Modes
Passive POE
One Button Advanced Security Setup
Multiple SSIDs (Guest Networks)
CCA Technology
MIMO Technology
Power On/Off Button
