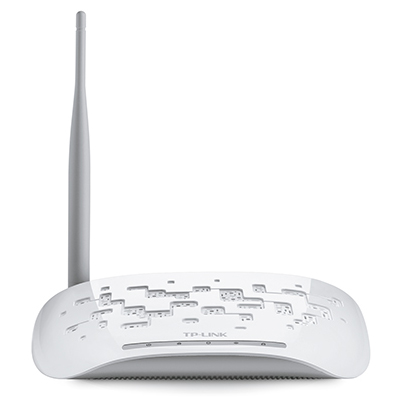

TP-LINK TL-WA701ND
150Mbps Wireless N Access Point


TP-LINK TL-WA701ND

Sorry, this product is no longer available, replaced by the TL-WA801ND.

Overview:

The TP-LINK Wireless N Access Point TL-WA701ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. It is designed using Align™ 1-stream technology to provide high-speed, unrivaled wireless performance for your network at 150Mbps. The APs support a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.

Wireless N Speed & Range

Complying with the IEEE 802.11n standard, TL-WA701ND can easily establish a wireless network and get up to 9X the speed and 4X the range of conventional 11g products. With Align™ technology based on the IEEE 802.11n 1-stream specification shows improved performance over the existing 802.11g technology, TL-WA701ND delivers performance enhancements, allowing you to have a more joyful surfing experience, including sharing files, watching streaming media.

Wireless N Speed & Range

Multiple Operating Modes - Easy to Build WLAN

Supports multiple operating modes (Access Point, Multi-SSID, Client, Universal/ WDS Repeater, Bridge with AP)  to enable various wireless applications to give users a more dynamic and comprehensive experience when using their AP. Multiple operating mode also helps you easily to build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Multiple Operating Modes - Easy to Build WLAN

Passive PoE Supported - More Flexible Deployment

The TL-WA701ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Passive PoE Supported - More Flexible Deployment

WPS
WPS

Instantly setup Wi-Fi connections simply by pressing the "WPS" button with Utility

Easy Setup
Easy Setup

A friendly user interface utility on a CD for simple installation

Features:

  • Wireless speed up to 150Mbps makes it ideal for bandwidth consuming applications
  • Supports multiple operating modes (Access Point, Client, Universal/WDS Repeater, Point to Point Bridge, Point to Multi-Point Bridge)
  • Easily setup a WPA encrypted secure connection at a push of the QSS button
  • Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming
  • Supports up to 30 meters (100 feet) of Power over Ethernet capability for flexible performance
  • Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated users
  • WPA/WPA2 encryptions provide your network with active defense against security threats
  • Backward compatible with 802.11b/g products
  • External detachable antennas allow for better alignment and stronger antenna upgrades
  • Wall mounted available, also can be placed horizontally on a table or desk

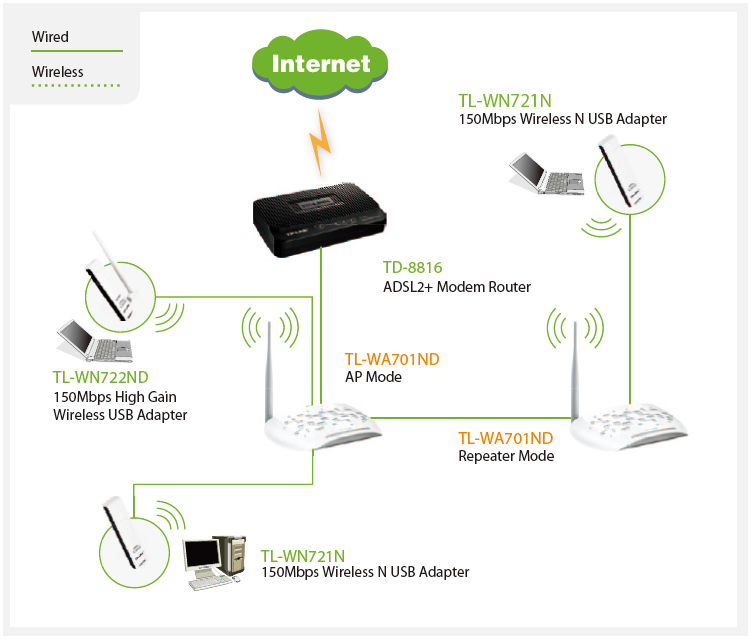

Diagram:

TL-WA701ND Diagram

Specifications:


TL-WA701ND Specifications
Hardware Features
Interface 1 10/100Mbps Auto-Sensing RJ45 Port (Auto MDI/MDIX, Passive PoE)
Button
  • Power On/Off Button
  • WPS Button
  • Reset Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Dimensions (W x D x H) 7.1 x 4.9 x 1.4 in. (181 x 125 x 36mm)
Antenna Type 5 dBi Detachable Omni Directional Antenna (RP-SMA)
Wireless Features
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n: Up to 450Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
Reception Sensitivity
  • 130M: -68dBm@10% PER
  • 54M: -68dBm@10% PER
  • 11M: -85dBm@8% PER
  • 6M: -88dBm@10% PER
  • 1M: -90dBm@8% PER
Wireless Modes
  • AP Mode, Multi-SSID Mode,
  • Client Mode, Repeater Mode (WDS / Universal ),
  • Bridge Mode
Wireless Functions
  • WDS Bridge,
  • WMM
Wireless Security
  • SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption
  • WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
Transmission Power <20dBm (EIRP)
Advanced Functions Up to 30 meters Passive PoE is supported
Others
Certification CE, FCC, RoHS
Package Contents
  • Wireless Access Point
  • 1 detachable Omni directional antenna
  • Power Supply Unit
  • PoE Power Injector
  • Resource CD
  • Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Views:

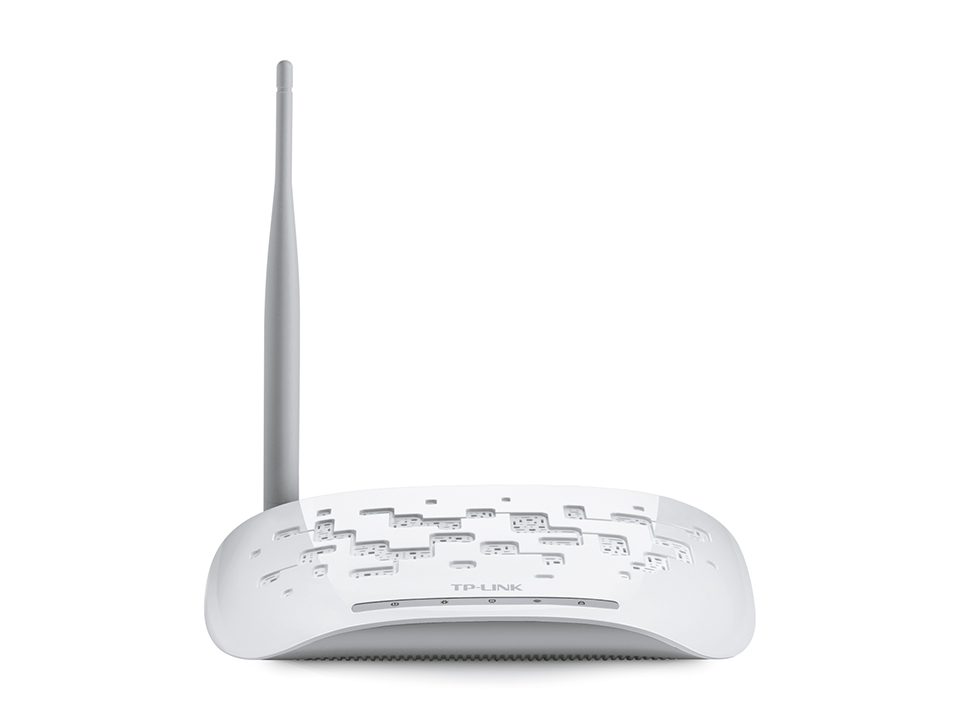

Front View
Front View

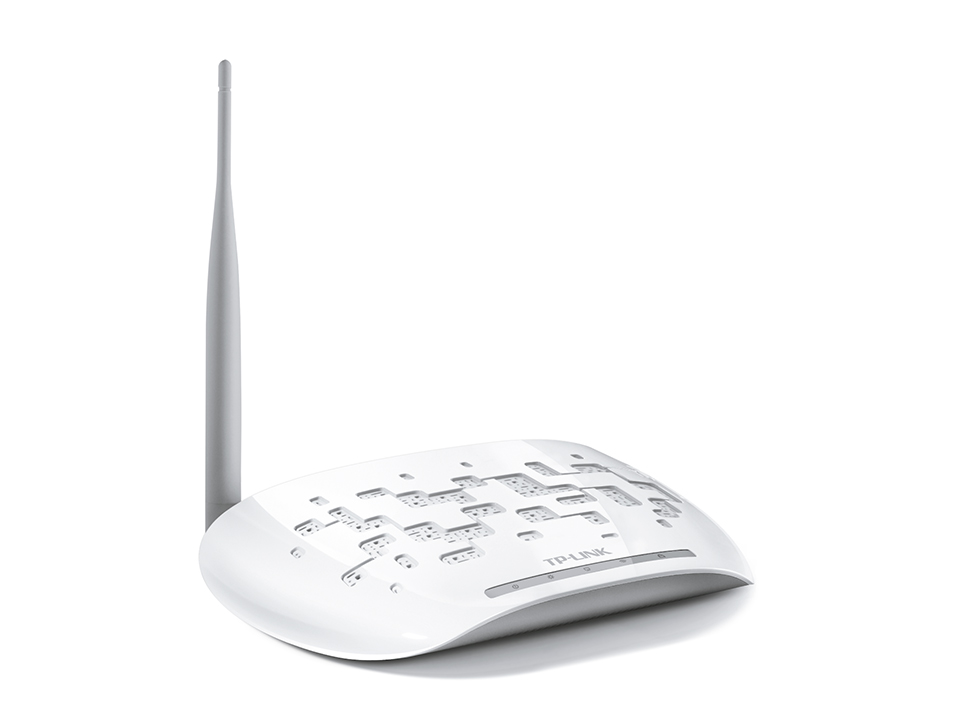

Right Angle View
Right Angle View

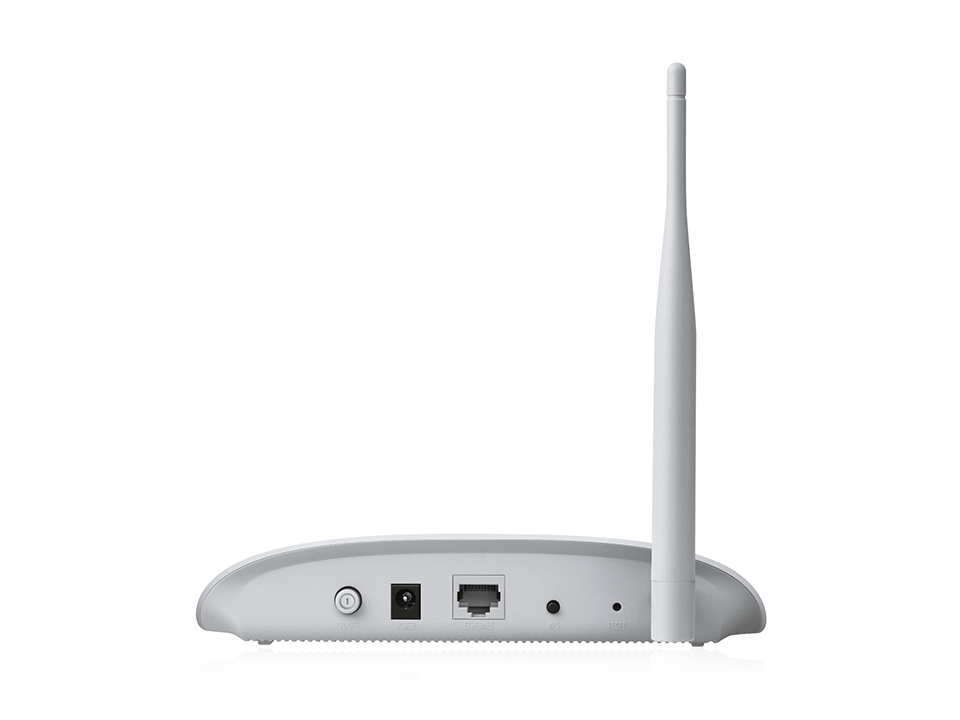

Rear View
Rear View
Package View
Package View


Compare:


  TL-WA701ND TL-WA801ND TL-WA901ND
Speed Up to 150 Mbps Up to 300 Mbps Up to 300 Mbps
Range Good Better Best
Wireless N
Easy Setup
Number/Type of Antenna(s) 1 x 5dBi 2 x 5dBi 3 x 4dBi
Detachable Antenna(s)
Multiple Operating Modes
Passive POE
One Button Advanced Security Setup
Multiple SSIDs (Guest Networks)
CCA Technology
MIMO Technology
Power On/Off Button
