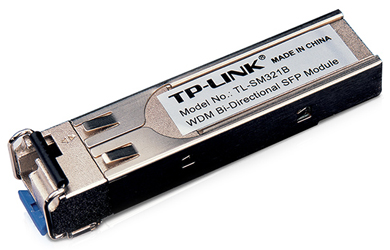

TP-LINK TL-SM321B
1000Base-BX WDM Bi-Directional SFP Module
Sorry, this product is no longer available, please contact us for a replacement.
TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
- Supports WDM Bi-Directional technology, using a single strand of fiber
- TX: 1310nm / RX: 1550nm
- Internal +3.3V Power Supply
- In pairs with TL-SM321A
- Plug-and-Play
- Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC200L
| TL-SM321B Specifications | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | TX: 1310nm / RX: 1550nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Single-mode Fiber |
| Fiber Type | 9/125 μm Single-mode |
| Max. Cable Length | 10km |
| Data Rate | 1.25 Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
