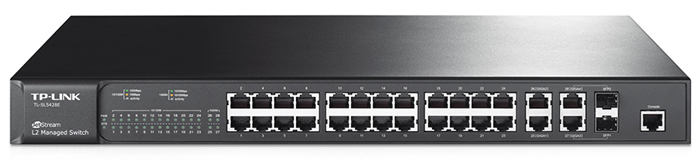

TP-LINK TL-SL5428E
JetStream 24-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch


TP-LINK TL-SL5428E

Sorry, this product is no longer available. Please Contact Us for a replacement.


JetStreamOverview:

Designed for workgroups and departments, TL-SL5428E from TP-LINK provides full set of layer 2 management features. It delivers maximum throughput where you need it — to high-performance workgroups at the edge of the network, or as a backbone for Fast Ethernet switches and high-speed servers indemanding small networks. Moreover, TL-SL5428E switch also comes equipped with 4 combo SFP slots, giving you greater network flexibility.

This TP-LINK L2 managed switch has robust security and management features. An advanced Access Control List (ACL, L2 to L4) and the TP-LINK strong safeguard provide security coverage from core to edge and protect against broadcast storm, ARP and Denial-of-Service(DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch, and additional Gigabit capability, TP-LINK L2 fully managed Switch TL-SL5428E can provide you the ideal access-edge solution.

  • ACL, 802.1X Authentication, Port Security, IP Filtering, Storm control, DHCP Snooping, IP Source Guard and DoS Defend provide you robust security strategy
  • Single-IP-Management supports virtual stack of 32 units
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video application
  • SNMP, RMON, WEB/CLI/Telnet Log-in bring abundant management policies

Non-Blocking Switching

The TP-LINK fully managed L2 switch TL-SL5428E provides non-blocking switching solution for a 10/100Mbps fast Ethernet connection. As to the switching capacity, TL-SL5428E has a non-blocking aggregated bandwidth of 12.8Gbps. It provides 24 10/100Mbps ports and 4 gigabit 10/100/1000BASE-T ports. All of these ports are combo gigabit ports, which will be disabled if the corresponding 1000BASE-X SFP slots are used. It can give you greater network flexibility.

Virtual Stackable

IP Clustering allows up to 32 TL-SL5428E switches to be managed by a single IP, regardless of geographical locations. With all units identified by a single IP address, the stack could be configured, monitored, maintained as a single object.

Traffic running across units in this virtual stack utilizes full-duplex interfaces and network wires, eliminating costly and cumbersome cables, minimizing the impact of any single point of failure.

Comprehensive Security Strategy

Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. This is done by hardware, so switching performance would not be compromised.

Moreover, the TL-SL5428E switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. And more, it supports Guest VLAN to enable the non-802.1X clients to access the specific network resource. In addition,IP-MAC-Port-VID Binding, Port Security, Storm control, DHCP Snooping and IP Source Guard support can protect against broadcast storms, ARP and Denial-of-Service(DoS) attacks, etc. Regarding to the DoS defending, TL-SL5428E provides you some typical DoS attacks to select. You can protect these attacks more easily ever than before. TL-SL5428E will provide you robust security to the network.

Enterprise Level Manageability and Resiliency

TL-SL5428E supports various user-friendly standard management features,such as intuitive web-based Graphical User Interface(GUI)or industry-standard Command Line Interface(CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. This sharing of vital management information saves time and money. With link aggregation, spanning tree protocol(STP/RSTP/MSTP)and virtual stack, a highly intelligent and scalable topology could be established, fulfilling the enterprise customers´ requirement of building a unified, resilient network.

Optimized Voice and Video Applications

To integrate voice, data and video service on one network, TL-SL5428E applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, so voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.

For other multimedia-on-demand application such as IPTV, TL-SL5428E provides advanced features for easy stream management. For example, IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Features:

  • Link aggregation (LACP) increases aggregated bandwidth, optimizing the transport of business critical data
  • IEEE 802.1s Multiple Spanning Tree, provides high link availability in multiple VLAN environments.
  • Support IEEE 802.1d/w/s Spanning Tree (STP/RSTP/MSTP)
  • IGMP snooping allows the forwarding of multicast packets such as streaming audio and video, without increasing network broadcast congestion.
  • Non-blocking Layer 2 Switching Capacity
  • GVRP (GARP VLAN Registration Protocol) allows automatic learning and dynamic assignment of VLANs
  • Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
  • Q-in-Q increases the network scalability by providing a hierarchical structure
  • Supports 802.1P, Class of Service (CoS) with 4 priority queues per port
  • Rate limiting confines the traffic flow accurately according to the preset value
  • Supports multiple industry standard user authentication methods such as 802.1x, RADIUS Authentication, Supports 512 IP-MAC-Port-VID Binding entries
  • IP Source Guard prevents IP spoofing attacks such as DoS
  • Port Security enhances the security of all ports
  • L2/L3/L4 Access Control Lists restrict untrusted access to the protected resource
  • LLDP serves to reduce the complexities of the network
  • Virtual stackable provides high scalability and easy Single-IP-Management
  • Supports Telnet, Cisco like CLI, SNMP v1/v2/v3, RMON and web access
  • Supports SSL and SSH encryptions
  • Port Mirroring enables monitoring selected ingress/egress traffic

Specifications:


TL-SL5428E Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Power Supply 100-240VAC, 50/60Hz
Interface
  • 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 4 Combo Gigabit SFP Ports
  • 1 Console Port
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X: MMF, SMF
Fan Quantity Fanless
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm)
19-inch Rack mount Steel Case, 1U Height
Power Consumption Maximum: 15W (220V/50Hz)
Performance
Stacking 32 Units Virtual Stacking
Bandwidth/Backplane 12.8 Gbps
MAC Address Table 8K
Packet Forwarding Rate 9.5 Mpps
Jumbo Frame 2048 Bytes
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Quick Installation Guide
  • Resource CD
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Software Features:

L2 Switching Features

  • Link Aggregation
    • Support static link aggregation
    • Support 802.3ad LACP
    • Up to 14 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol (STP)
    • IEEE 802.1D Spanning Tree Protocol
    • IEEE 802.1s Multiple Spanning Tree Protocol
    • IEEE 802.1w Rapid Spanning Tree Protocol
    • STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
  • Multicast
    • Support IGMP Snooping V1/V2/V3, up to 256 groups
    • Support multicast VLANs, IGMP Immediate Leave, Unknown IGMP Throttling, IGMP Filtering, Static Multicast IP
  • VLAN
    • Support IEEE802.1Q with 4K VLANs simultaneously (out of 4K VIDs)
    • Support Port VLAN, Protocol VLAN, and Private VLAN
    • Support GARP/GVRP feature
  • IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Quality of Service (QoS)

  • Support 802.1p CoS/DSCP priority
  • Support 4 priority queues
  • Queue scheduling: SP, WRR, SP+WRR
  • Port/Flow- based Rate Limiting
  • Voice VLAN assure voice applications much smoother performance

Advanced Security Strategies

  • IP-MAC-Port-VID Binding
  • Static/Dynamic Port Security (MAC-based)
  • DoS defend feature
  • Dynamic ARP Inspection
  • 802.1x authentication
    • Support 802.1x port/MAC based authentication
    • Support Radius authentication and accountability
    • Guest VLAN
  • Access Control List (ACL)
    • L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
    • Time based ACL
  • Support Broadcast, Multicast and Unknown unicast Storm Control
  • Secure web management through HTTPS and SSLv2/v3/TLSv1
  • Secure remote command line interface(CLI) management with SSH v1/V2

Management

  • Support Web-based GUI management mode
  • Support Command Line Interface(CLI) through console port, telnet management mode
  • SNMP v1/v2c/v3
  • RMON (1, 2, 3, 9 groups)
  • DHCP/BOOTP Client
  • DHCP Snooping
  • DHCP Option 82
  • CPU Monitoring
  • Port Mirroring (Many to One)
  • Cable Diagnostics feature
  • Ping/Tracert feature
  • SNTP
  • Integrated NDP/NTDP feature
  • Batch Management
  • System Log

Ethernet Protocols

  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX/FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3av GVRP
  • IEEE 802.3ad Link Aggregation
  • IEEE 802.3x Flow control
  • IEEE 802.1p QoS
  • IEEE 802.1q VLANs / VLAN tagging
  • IEEE 802.1v Protocol VLAN
  • IEEE 802.1d Spanning Tree Protocol (STP)
  • IEEE 802.1s Multiple Spanning Tree (MSTP)
  • IEEE 802.1w Rapid Spanning Tree (RSTP)
  • IEEE 802.1x Network Login Security

MIBs

  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-LINK private MIBs

Documentation:

Download the TP-LINK TL-SL5428E Switch Datasheet (PDF).
