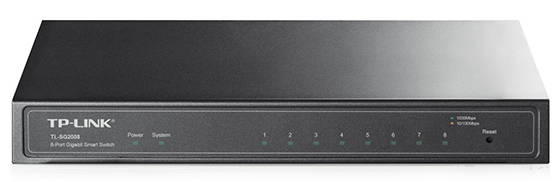

TP-LINK TL-SG2008
8-Port Gigabit Smart Switch


TP-LINK TL-SG2008

Sorry, this product is no longer available. Please Contact Us for a replacement.


Overview:

TP-LINK Gigabit Smart Switch TL-SG2008 is equipped with 8 gigabit RJ45 ports. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-LINK’s 8-Port Gigabit Smart Switch TL-SG2008 is especially designed for the small and medium business networks that require efficient network management. TL-SG2008 comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.

  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features
  • Innovative energy-efficient technology saves up to 65% of power consumption

Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 Features

For more application of layer 2 switches, TL-SG2008 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP; Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

TL-SG2008 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

Features:

Layer 2 Features

  • Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
  • Up to 512 VLANs simultaneously (out of 4K VLAN IDs)
  • STP/RSTP/MSTP
  • IGMP Snooping

Quality of Service

  • 4 priority queues
  • Support IEEE 802.1P
  • DSCP QoS
  • Rate limit feature

Security Strategies

  • Access Control List (L2~L4 ACL)
  • Port Security
  • Storm Control
  • SSL and SSH encryptions

Management

  • Web-based GUI
  • Command Line Interface (Telnet)
  • SNMP v1/v2c/v3
  • RMON (1, 2, 3, 9 group)

Specifications:

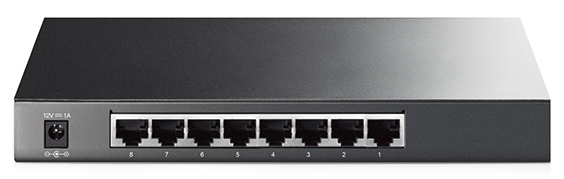

Rear View
Rear View

TL-SG2008 Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Power Supply 100-240VAC, 50/60Hz
Interface 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Dimensions ( W x D x H ) 8.2 x 4.9 x 1.0 in. (209 x 126 x 26mm)
13-inch Rackmount Steel Case, 1U Height
Power Consumption Maximum: 6.42W (220V/50Hz)
Performance
Bandwidth/Backplane 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 MB
Jumbo Frame 9216 Bytes
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Adapter
  • Quick Installation Guide
  • Resource CD
  • Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Software Features:

L2 Switching Features

  • Link Aggregation
    • Support static link aggregation
    • Support 802.3ad LACP
    • Up to 6 aggregation groups, containing 4 ports per group
  • Spanning Tree Protocol (STP)
    • IEEE 802.1D Spanning Tree Protocol
    • IEEE 802.1W Rapid Spanning Tree Protocol
    • IEEE 802.1S Multiple Spanning Tree Protocol
    • STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
  • Multicast
    • Support IGMP Snooping V1/V2/V3, up to 256 groups
    • Support multicast VLANs, IGMP Immediate Leave, Unknown IGMP Throttling, IGMP Filtering, Static Multicast IP
  • VLAN
    • Support IEEE802.1Q with 512 VLANs simultaneously (out of 4K VIDs)
  • IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Quality of Service (QoS)

  • Support 802.1p CoS/DSCP priority
  • Support 4 priority queues
  • Queue scheduling: SP, WRR, SP+WRR
  • Port/Flow- based Rate Limiting
  • Voice VLAN assure voice applications much smoother performance

Advanced Security Strategies

  • Support Broadcast, Multicast and Unknown unicast Storm Control
  • Static/Dynamic Port Security (MAC-based)
  • Access Control List (ACL)-L2~L4 package ltering based on source and destination MAC address, IP address, TCP/UDP ports
  • SSL and SSH encryptions

Management

  • Support Web-based GUI management mode
  • Support Command Line Interface(CLI) through console port, telnet management mode
  • SNMP v1/v2c/v3
  • RMON (1, 2, 3, 9 groups)
  • DHCP/BOOTP Client
  • CPU Monitoring
  • Port Mirroring (Many to One)
  • Cable Diagnostics feature
  • Ping/Tracert feature
  • System Log

Ethernet Protocols

  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX/FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3x Flow control
  • IEEE 802.1p QoS
  • IEEE 802.1q VLANs / VLAN tagging
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1S Multiple Spanning Tree (MSTP)
  • IEEE 802.1W Rapid Spanning Tree (RSTP)

MIBs

  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-LINK private MIBs

Documentation:

Download the TP-LINK TL-SG2008 Switch Datasheet (PDF).
