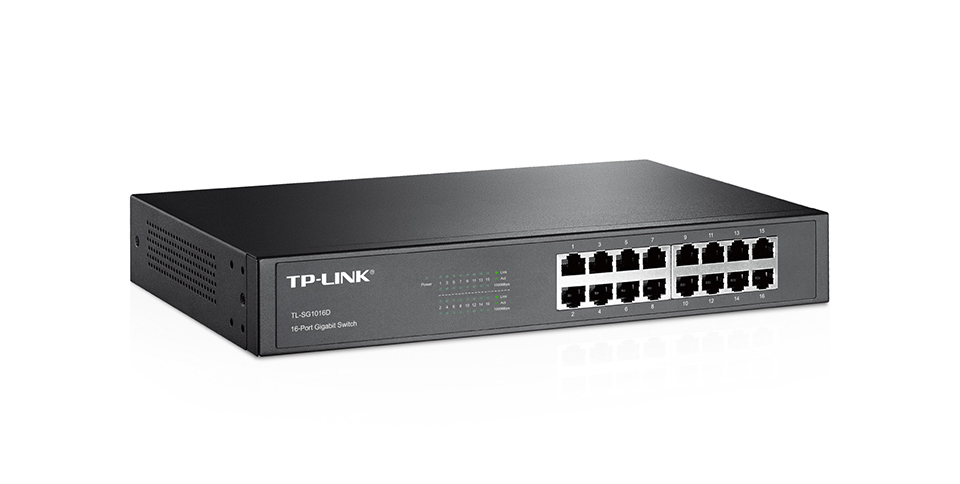

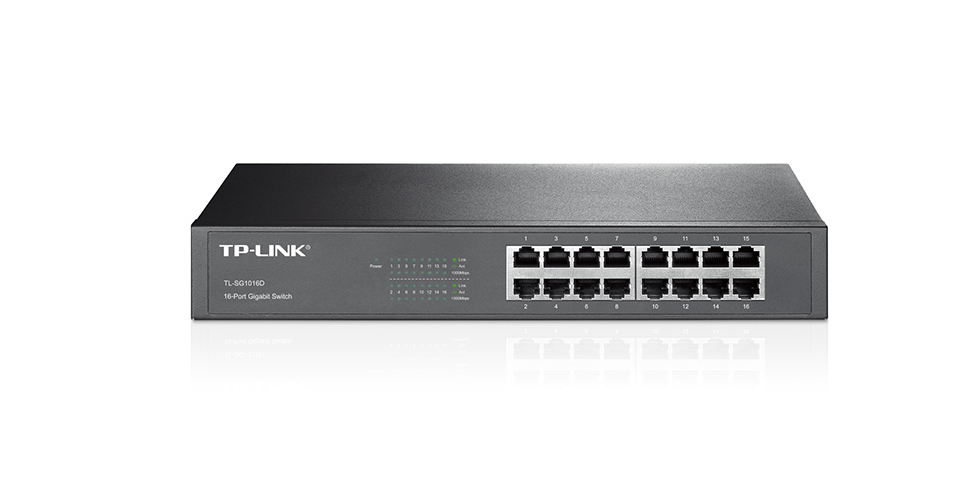

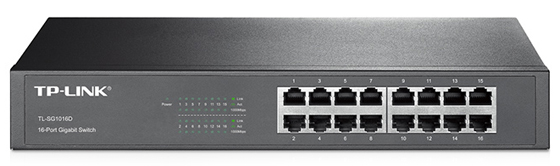

TP-LINK TL-SG1016D
16-Port Gigabit Desktop/Rackmount Switch

Overview:

The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 15%* of the power consumption, making it an eco-friendly solution for your business network.

• 16 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power up to 15%
• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
• Plug & play design

TP-LINK Green Technology

This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-ecient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

• Power down Idle Ports
  When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
• Power Budget According to Cable Length
  Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large le transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring nonblocking switching architecture, TL-SG1016D forwards and lters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large les transfers is improved signicantly. And IEEE 802.3x ow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the trac congestion and make The TL-SG1016D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
