TP-LINK TL-SG1008PE
8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+


TP-LINK TL-SG1008PE

Sorry, this product is no longer available. Please Contact Us for a replacement.


Overview:

The TL-SG1008PE is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1008PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

  • 8 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Innovative energy-efficient technology reduces power output by up to 75%
  • Plug and play design, no configuration required

Power Over Ethernet

All 8 Auto-Negotiation RJ45 ports of the switch support Power over Ethernet Plus(PoE+) function. These PoE+ ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

  • Overload Arrangement
    TL-SG1008PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 124W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
  • Port Priority Function
    Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

How This Product Works

All 8 ports of TL-SG1008PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Ease of Use

TL-SG1008PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1008PE 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Features:

  • Equipped with 8 PoE+ ports
  • Supports PoE+ standard with total power budget of 124W and up to 30W per port
  • Supports PoE+ IEEE 802.3af/at compliant devices
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 8K entry MAC address table of the TL-SG1008PE with auto-learning and auto-aging
  • LED indicators to monitoring power, link, activity and speed
  • Internal power supply

Specifications:


TL-SG1008PE Specifications
Hardware Features
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum (PoE on): 133.8W (220V/50Hz)
Maximum (PoE off): 9.8W (220V/50Hz)
PoE+ Ports (RJ45)
  • Standard: 802.3at/af compliant
  • PoE+ Ports: 8 Ports
  • Power Supply: 124W
Performance
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 2 MB
Jumbo Frame 16KB
Software Features
Advanced Features
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Priority Function
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Installation Guide
  • Rackmount kit
  • Rubber Feet
Consumption
  • 9.5 watts (max. no PD connected)
  • 140.1 watts (max. with 124w PD connected)
System Requirements Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Views:

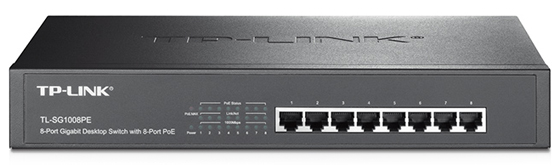

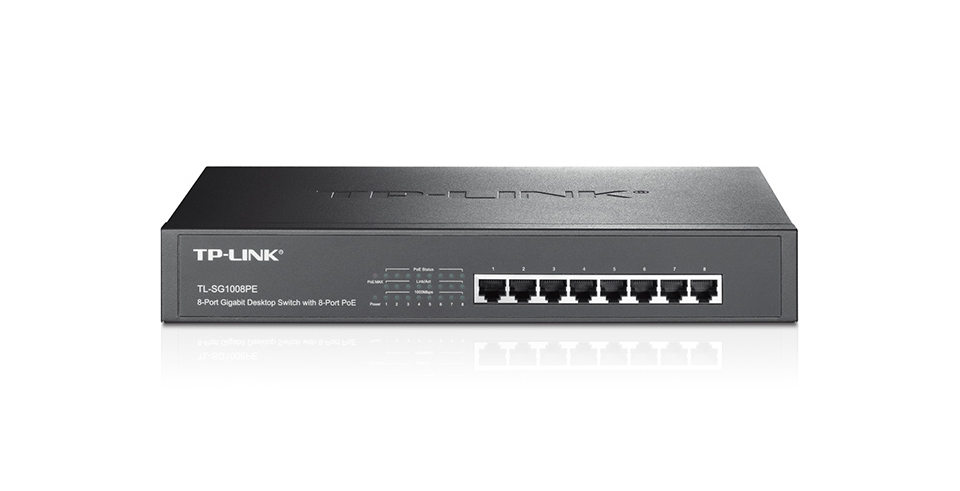

Front View
Front View

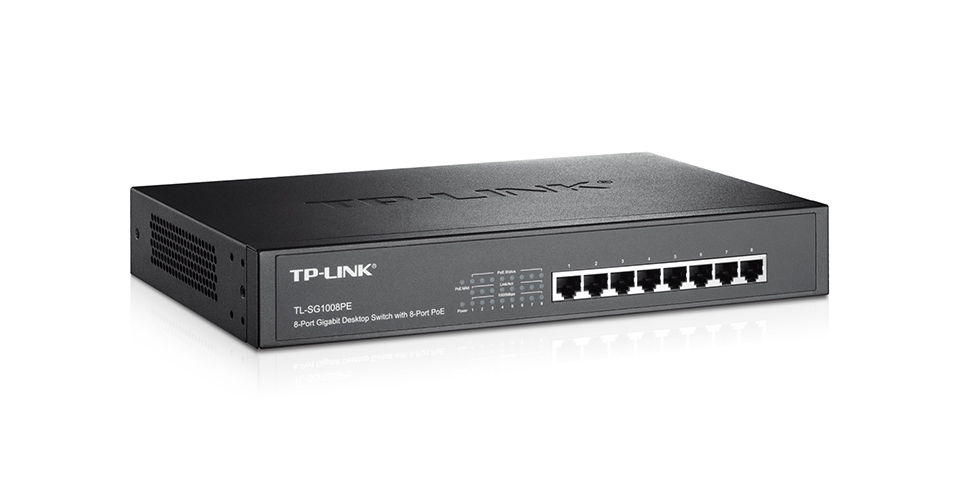

Right Angle View
Right Angle View

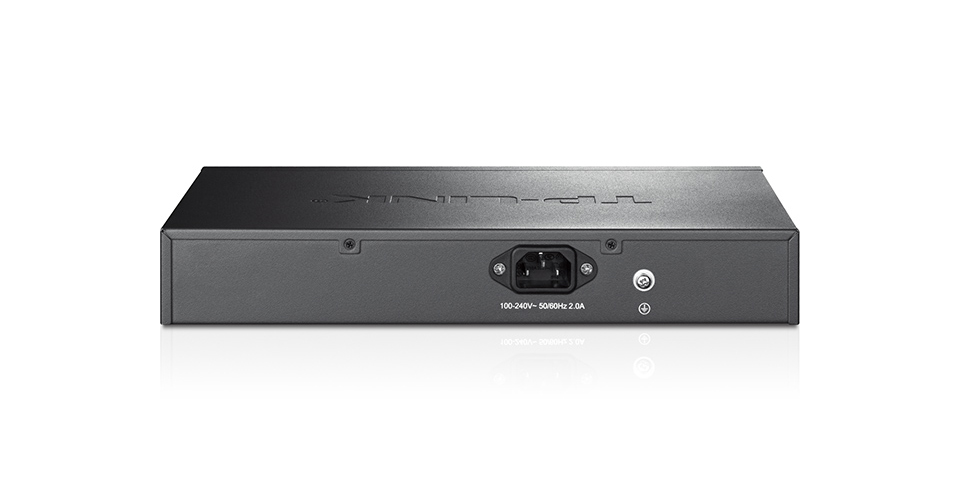

Rear View
Rear View
Package View
Package View


Documentation:

Download the TP-LINK TL-SG1008PE Switch Datasheet (PDF).
