TP-LINK TL-SG1008
8-Port Gigabit Desktop/Rackmount Switch


TP-LINK TL-SG1008

Sorry, this product is no longer available, replaced by the TP-LINK TL-SG108.



Overview:

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save up to 60%* of the power consumption, making it an eco-friendly solution for your business network.

  • 8 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 70%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 13-inch rackmount steel case

TP-LINK Green TechnologyTP-LINK Green Technology

This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Features:

  • Innovative energy-efficient technology saves power up to 70%
  • 100% Data filtering rate eliminates all error packets
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • 16Gbps Switching Capacity
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Support the port N-Way Auto-Negotiation, Store and Forward
  • Compact size design for desktops, rackmountable
  • Plug and Play design simplifies installation
  • Fanless design to make sure it works quietly

Specifications:


TL-SG1008 Specifications
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 3.32W (220V/50Hz)
Performance
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 2 MB
Jumbo Frame 16KB
Green Technology Innovative energy-efficient technology saves power up to 60%
Transfer Method Store-and-Forward
Others
Certification CE, FCC, RoHS
Package Contents
  • Switch
  • Power Cord
  • Installation Guide
  • Rackmount kit
  • Rubber Feet
System Requirements Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Views:

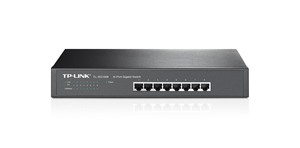

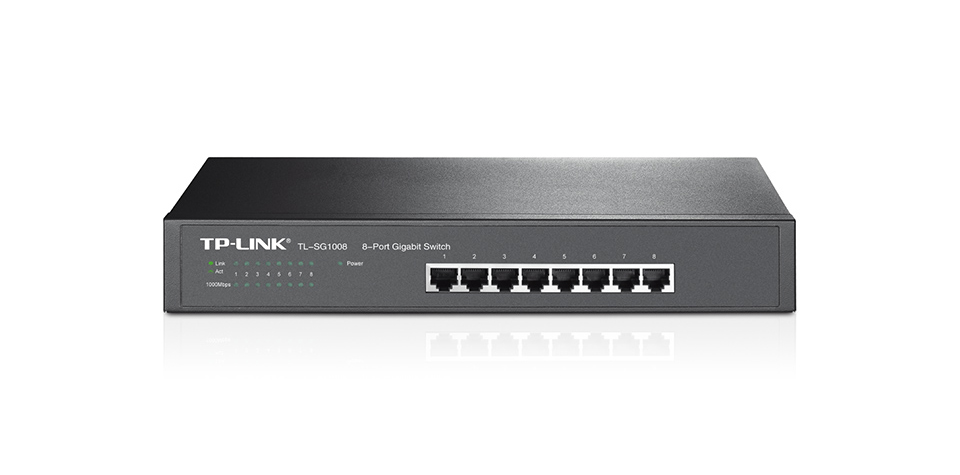

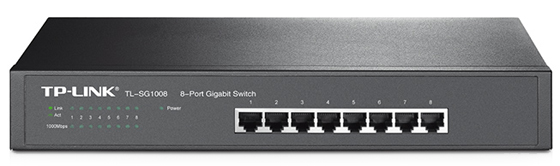

Front View
Front View

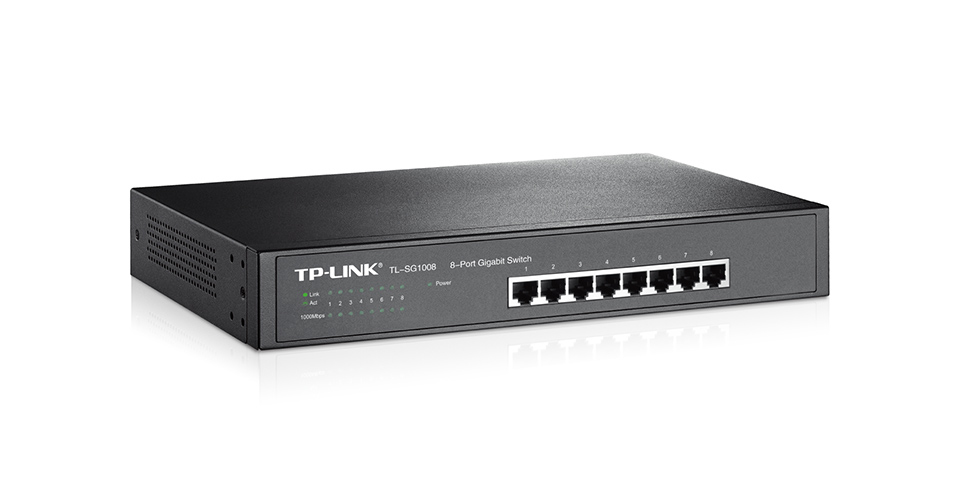

Right Angle View
Right Angle View
Package View
Package View

Documentation:

Download the TP-LINK TL-SG1008 Switch Datasheet (PDF).
