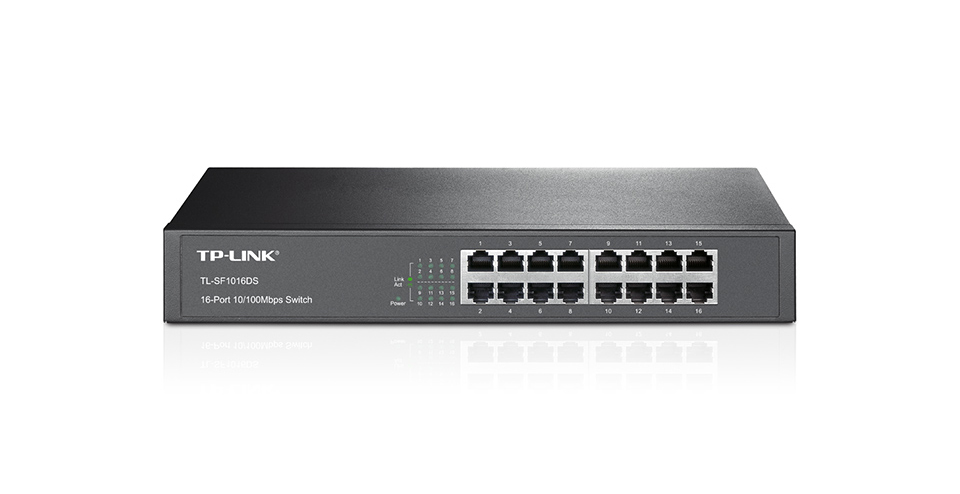

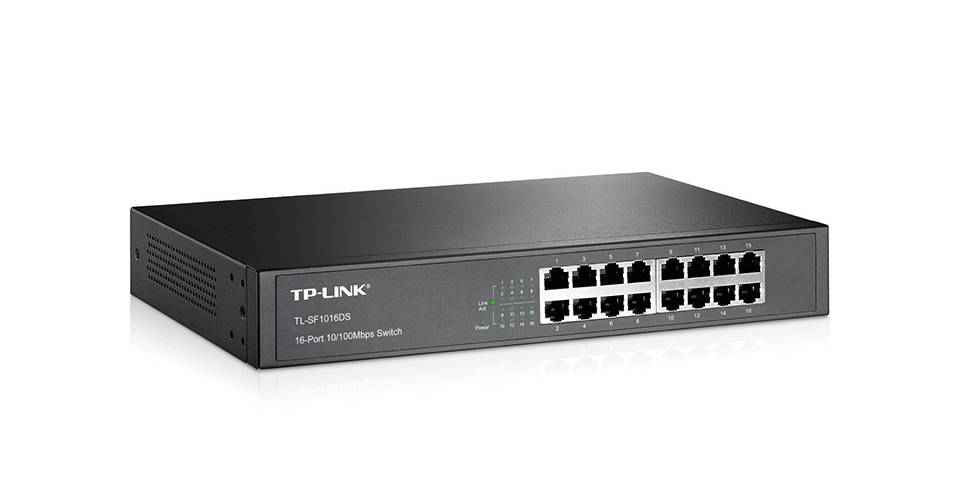

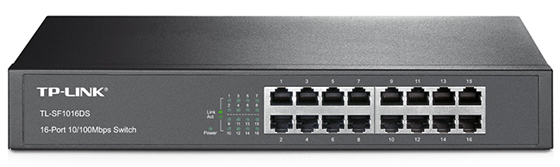

TP-LINK TL-SF1016DS
16-Port 10/100Mbps Desktop/Rackmount Switch

TP-LINK TL-SF1016DS

Sorry, this product is no longer available. Please Contact Us for a replacement.

Overview:

The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 75% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

16 10/100M RJ45 ports.
Innovative energy-efficient technology saves power up to 75%
Supports MAC address self-learning and auto MDI/MDIX.
Standard 13-inch steel case

TP-LINK Green Technology

This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Ease of Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Features:

Innovative energy-efficient technology saves power up to 75%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
3.2 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
Plug and Play design simplifies installation
Fanless design to make sure it works quietly

Specifications:

TL-SF1016DS Specifications
Hardware Features
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface	16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Dimensions ( W x D x H )	11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Power Supply	100-240VAC, 50/60Hz
Power Consumption	Maximum: 2.23W (220V/50Hz)
Performance
Switching Capacity	3.2 Gbps
Packet Forwarding Rate	2.38 Mpps
MAC Address Table	8K
Packet Buffer Memory	2 MB
Jumbo Frame	10KB
Green Technology	Innovative energy-efficient technology saves power up to 75%
Transfer Method	Store-and-Forward
Others
Certification	CE, FCC, RoHS
Package Contents	Switch Power Cord Installation Guide Rackmount kit Rubber Feet
System Requirements	Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
