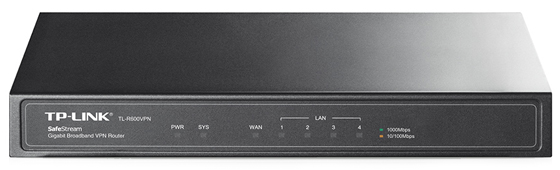

TP-LINK TL-R600VPN
SafeStream Gigabit Broadband VPN Router


TP-LINK TL-R600VPN

TP-Link Products
TP-LINK Routers
TP-LINK SafeStream Gigabit Broadband VPN Router
#TL-R600VPN
Get a Quote!



Overview:

The TL-R600VPN, TP-LINK's SafeStream Gigabit Broadband VPN Router, supports Gigabit Ethernet connections on both WAN and LAN ports which guarantee high-speed wired connectivity. What’s more, it integrates multiple VPN protocols, high-security and high-performance VPN capabilities, which enable employees’ remote connections to their main offices as secure as if they were in the main office. Besides, TL-R600VPN’s abundant security strategies such as SPI Firewall, DoS Defense and IP-MAC Binding help protect your network against most known attacks. TL-R600VPN is an ideal partner for small offices, which need cost-effective and reliable VPN solutions.

  • 1 Gigabit WAN port and 4 Gigabit LAN ports provide high-speed wired connectivity
  • Supports IPsec/PPTP VPN protocols, Up to 20 IPsec VPN tunnels and 16 PPTP VPN tunnels are simultaneously supported
  • SPI firewall and DoS defense protect your network from most known Internet attacks
  • Professional 4KV lightning protection keeps your investment safe and sound

Safety Minded Enterprise Investments

Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the electrical equipment and is discharged harmlessly into the Earth. This router is designed to prevent lightning up to 4KV in well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of mother nature's more violent situations.

Abundant Security Features

For defense against external threats, TL-R600VPN features SPI Firewall function. Additionally, it can automatically detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/Domain name filtering functions, which forcefully prevent attacks from intruders and viruses. For applications such as FTP, TFTP, H.323 and RTSP which are not well compatible with NAT, TL-R600VPN offers administrators one-click enable of ALG choices corresponding to the above four mentioned applications.

High VPN Performance

TL-R600VPN supports IPsec and PPTP VPN protocols and can handle IPsec/PPTP/L2TP pass-through traffic as well. It also features a built-in hardware-based VPN engine allowing the router to support and manage up to 20 LAN-to-LAN IPsec and 16 PPTP VPN connections. Advanced VPN features include: DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, Manual/IKE key management, and Main/Aggressive negotiation modes.

Features:

VPN

  • Up to 20 IPsec VPN Tunnels
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • MD5, SHA1 Authentication Algorithm
  • Manual, IKE Key Management Mode
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
  • 16 PPTP VPN Tunnels
  • PPTP VPN Server
  • PPTP with MPPE Encryption

Security

  • SPI Firewall
  • VPN Passthrough
  • FTP/TFTP/H.323/RTSP ALG
  • DoS Defense
  • IP/MAC/Domain Filtering
  • IP & MAC Binding

Others

  • Static Routing
  • Bandwidth Control
  • Dynamic DNS
  • Remote Management

Specifications:


TL-R600VPN Specifications
Hardware Features
Standards and Protocols
  • IEEE 802.3, 802.3u, 802.3ab
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP
Interface
  • 1 Gigabit WAN port
  • 4 Gigabit LAN ports
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply
  • Internal Universal Power Supply
  • AC100-240V~ 50/60Hz Input
Dimensions ( W x D x H ) 8.23 x 4.96 x 1.02 in. (209 x 126 x 26 mm)
Flash SPI 8MB
DRAM DDRII 64MB
LED PWR, SYS, WAN, LAN
Performance
Concurrent Session 10000
NAT Throughput 120Mbps
IPsec VPN Throughput (3DES) 20Mbps
Basic Functions
DHCP
  • DHCP Server/Client
  • DHCP Address Reservation
MAC Clone Modify WAN MAC Address
WAN Connection Type Static/Dynamic IP, PPPoE/Russian PPPoE, PPTP/Russian PPTP, L2TP/Russian L2TP, Bigpond Cable
Advanced Functions
ACL IP/MAC/Domain Name Filtering
Advanced Routing Static Routing
ARP Inspection IP/MAC Binding
Bandwidth Control
  • IP/Port-based Bandwidth Control
  • Guarantee & Limited Bandwidth
Forwarding
  • Virtual Server
  • Port Triggering
  • DMZ
  • UPnP
Security
  • SPI Firewall
  • VPN Passthrough
  • FTP/TFTP/H.323/RTSP ALG
  • DoS Defence, Ping of Death
  • Local Management
VPN
PPTP VPN
  • 16 PPTP VPN Tunnels
  • PPTP VPN Server
  • PPTP with MPPE Encryption
IPsec VPN
  • 20 IPsec VPN Tunnels
  • LAN-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • MD5, SHA1 Authentication Algorithm
  • Manual, IKE Key Management Mode
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
Management
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
  • Time Setting
  • Diagnostic
  • Firmware Upgrade
  • Factory Defaults/Reboot
  • Backup & Restore
  • System Log
  • Remote Management
  • Statistics
Others
Certification CE, FCC, RoHS
Package Contents
  • VPN Router
  • Power Cord
  • RJ-45 Ethernet Cable
  • Quick Installation Guide
  • Resource CD
System Requirements Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F),
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing,
Storage Humidity: 5%~90% non-condensing

Documentation:

Download the TP-LINK TL-R600VPN VPN Router Datasheet (PDF).
