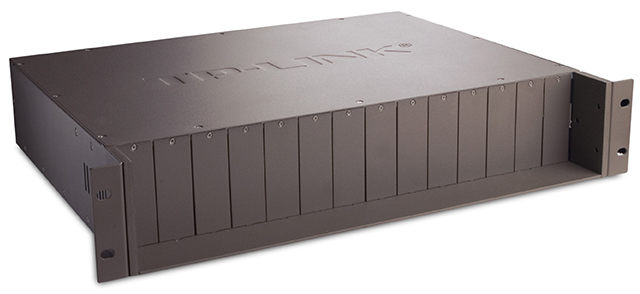

TP-LINK TL-MC1400
14-Slot Rackmount Chassis


TP-LINK TL-MC1400

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

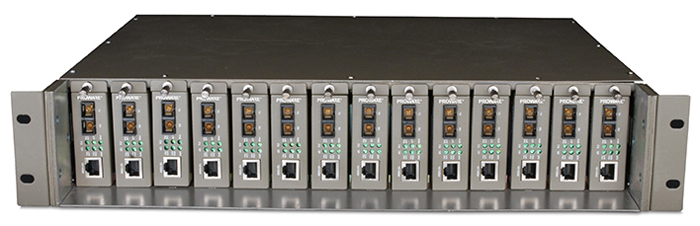

The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINK‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.

  • 14 bays to house up to 14 media converters
  • Optional redundant power supply to ensure non-stop reliable operation
  • Hot-Swappable; easy & quick replacement of converter and power supply
  • Mounted two cooling fans for better ventilation

14-Slot Rackmount Chassis

Features:

  • 14 bays to house up to 14 media converters
  • Standard 19-inch rack-mountable with 2U height
  • Optional redundant power supply to ensure non-stop reliable operation
  • Provides hot-swapping of media converters and redundant power supplies
  • Two cooling fans (internal) mounted at the rear panel for system cooling
  • Media converter power isolation for electrical isolation from each bay
  • Offers over-voltage and over-current protections
  • For TP-LINK Media Converters, TL-MC1400 supports MCXXX ver:2.0 and above, not ver:1.0.”

Specifications:


TL-MC1400 Specifications
Fan Quantity Fanless
AC Power Supply Input: 100-240V~50/60Hz 3.0A(Max)
Output:+9.5VDC, 9.5A(Max)
Vripple: ≤50mv
Noise: ≤100mv
Dimensions ( W x D x H ) 19.0 x 14.1 x 3.4in.(482 x 358 x 86)
Standard 19-Inch, 2U height
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Documentation:

Download the TP-LINK Media Converters & Chassis Datasheet (PDF).
