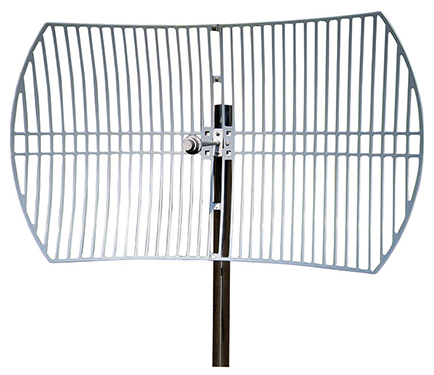

TP-LINK TL-ANT5830B
5GHz 30dBi Outdoor Grid Parabolic Antenna


TP-LINK TL-ANT5830B

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

The TL-ANT5830B 5GHz 30dBi Outdoor Grid Parabolic Antenna is ideal for outdoor use by attaching to your wireless access points/routers which operate on less crowded 5GHz band. It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no con­figuration or software installation required.

  • Compliant with 802.11a/n, 5GHz wireless application
  • 30dBi signal gain
  • Direction operation
  • N Type Female connector
  • Provided mounting kits enable easy installation for various environments

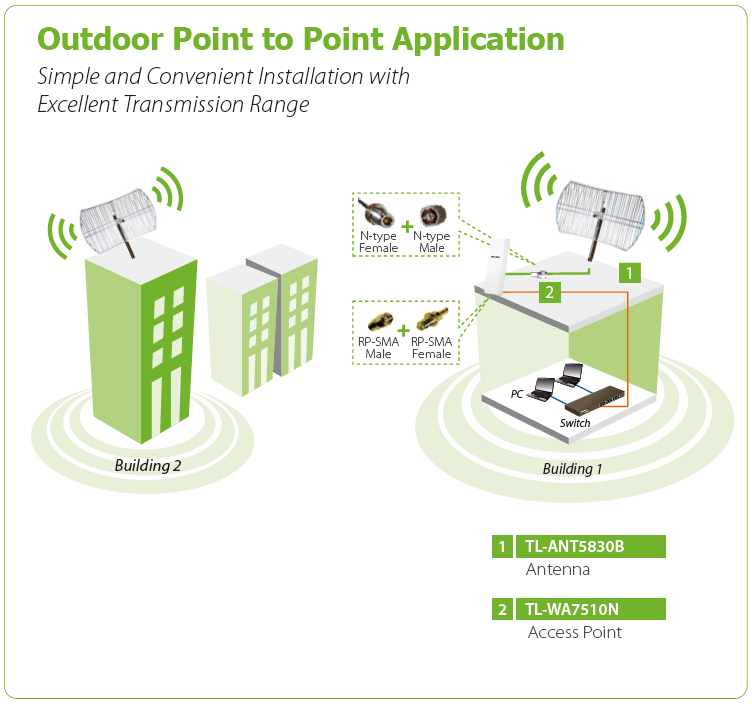

Diagram:

TL-ANT5830B Diagram

Specifications:


TL-ANT5830B Specifications
Frequency 5.15~5.85GHz
Gain (Exclude Cable Loss) 30dBi
VSWR (MAX.) 1.8
Polarization Vertical or Horizontal
Beamwidth (HPBW)
  • Horizontal: 6°
  • Vertical: 4°
F/B Ratio >30dB
Impedance 50 Ohms
Maximum Input Power 100W
Interfaces N Female
Mounting Mast Diameter Ø30~Ø50 mm
Mounting Pole Mount / Wall Mount
Survival Wind Speed 241Km/hr
Radome Material Aluminium Die Cast
Standards RoHS, WEEE
Dimensions 600 × 900 (mm)
Environment Operating Temperature: -10°C~60°C (14°F~140°F)
Storage Temperature: -40°C~80°C (-40°F~176°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
  • 5GHz 30dBi Outdoor Grid Parabolic Antenna
  • Installation mounting kits
  • Quick Installation Guide

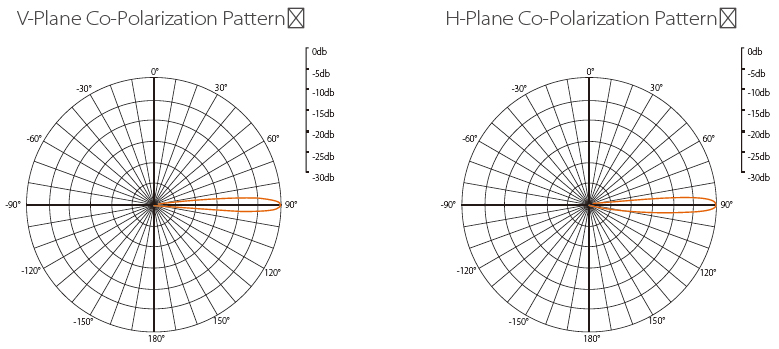

Radiation Patterns:

Radiation Patterns

Documentation:

Download the TP-LINK TL-ANT5830B Datasheet (PDF).
