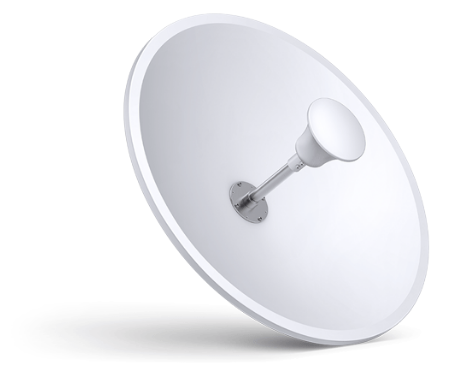

TP-LINK TL-ANT2424MD
2.4GHz 24dBi 2×2 MIMO Dish Antenna


TP-LINK TL-ANT2424MD

Sorry, this product is no longer available. Please Contact Us for a replacement.


Overview:

The Pharos Dish Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. This antenna features high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Point data transmission.

  • High-gain directional antenna provides long distance Point-to-Point bridge and network backhaul
  • Easy installation and seamless integration with the Pharos Base Station WBS210
  • MIMO technology ensures increased throughput
  • Weatherproof design offers protection in harsh environments

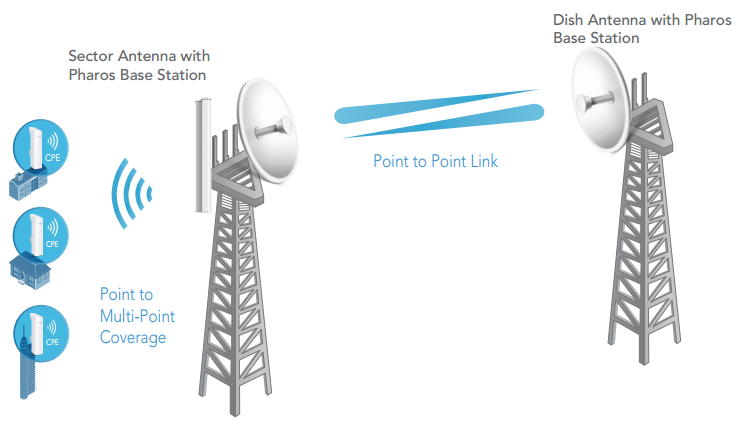

Scenarios/Topology

A TL-ANT2424MD installed with a Pharos Base Station, is ideal for supporting long distance Point-to-Point data transmission. When installed alongside a Pharos Base Station, the TL-ANT2424MD is capable of providing long distance Point-to-Point bridge and network backbaul.

Scenarios/Topology

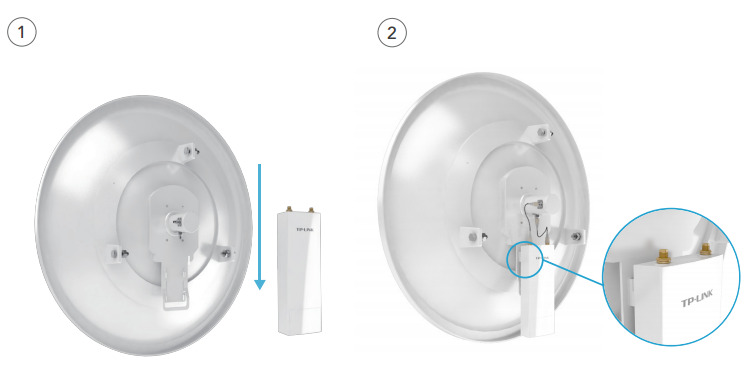

Easy Installation

TP-LINK dish antennas feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

Easy Installation

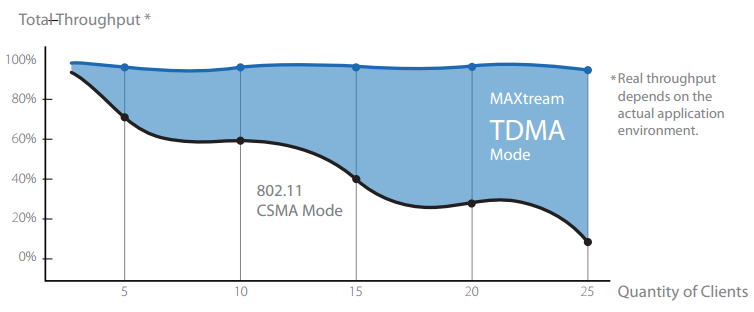

MAXtream TDMA Protocol

As networks grow in scale, wireless devices often compete for access to a single data connection, resulting in diminished throughput and an inferior experience for the end-user. Pharos Series devices utilize MAXtream TDMA Technology to counteract this competition and ensure that data transfer rates remain high, even as demand increases.

MAXtream TDMA Protocol

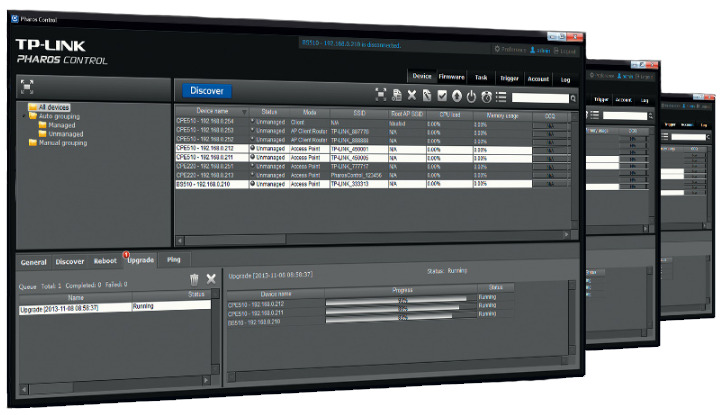

Pharos Control

Pharos Control is a centralized management software that allows users to easily manage network devices from any PC on the network. It provides ultimate convenience for users who wish to control device discovery, monitor network status, upgrade device rmware, or perform other network maintenance tasks.

Pharos Control - Centralized Management System

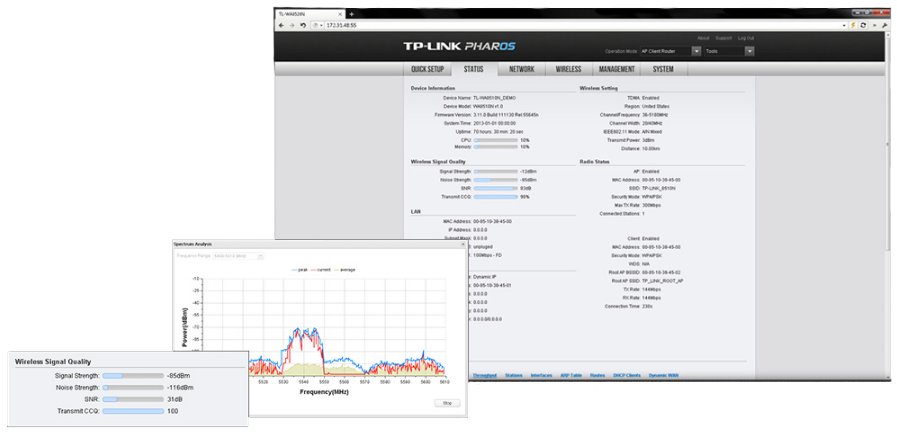

PharOS

PharOS is a user-friendly, web-based management system that allows advanced users and network professionals to perform ne-tune calibrations and access more advanced conguration options.

PharOS

Specifications:


TL-ANT2424MD Specifications
Frequency 2.3 ~ 2.7GHz
Impedance 50Ω
Gain 24dBi (Exclude Cable Loss)
VSWR (MAX.) 1.8
HPOL Beamwidth 6° (3dB)
VPOL Beamwidth 6° (3dB)
Elevation Beamwidth 6° (3dB)
Polarization Horizontal & Vertical
Mounting Pole Mount
F/B Ratio 32dB Min
Survival Wind Speed 241 Km/h
Standards RoHS, WEEE
Interfaces RP-SMA
Dimension Product Size: 650 x 650 x 360 mm
Package Size: 790 x 710 x 200 mm

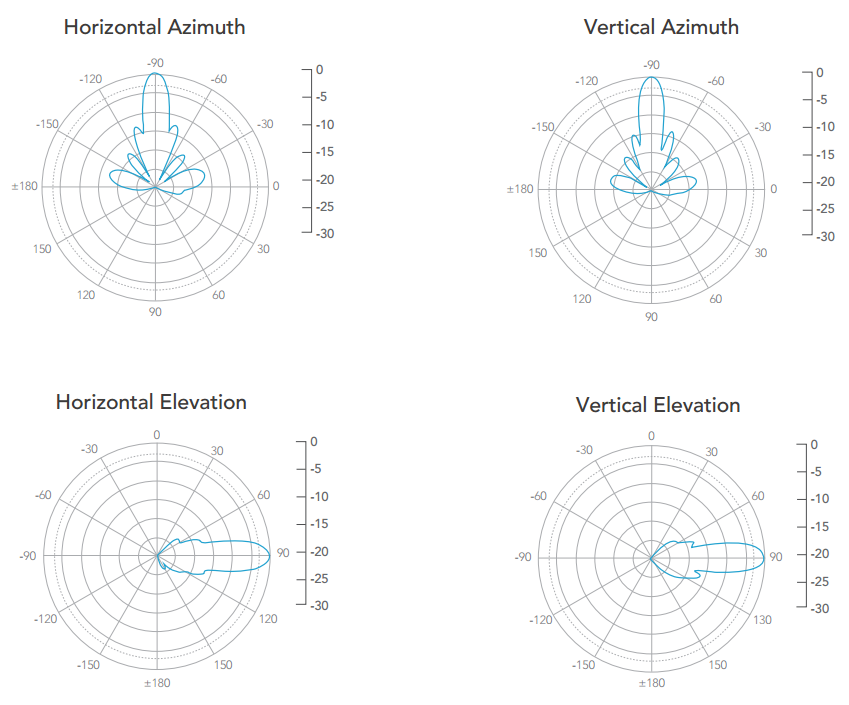

Radiation Patterns:

Radiation Patterns

Documentation:

Download the TP-LINK TL-ANT2424MD and TL-ANT5830MD Datasheet (PDF).
