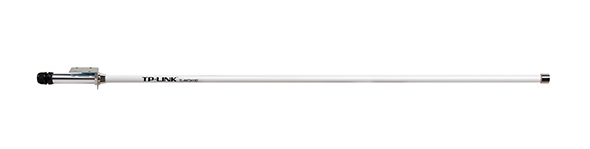

TP-LINK TL-ANT2415D
2.4GHz 15dBi Outdoor Omni-Directional Antenna


TP-LINK TL-ANT2415D

Sorry, this product is no longer available, Please contact usfor a replacement.



Overview:

Outdoor omni-directional antenna TL-ANT2415D operates in the 2.4-2.5 GHz band and provides 15dBi omni-directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the N female connector guaranteeing wider compatibility with most of the wireless equipments. Also, the weather proof design ensures that it can work normally for various demanding outdoor solutions.

The Outdoor Omni-Directional Antenna emits a powerful amplified signal over a 360 degree radius, delivering a strong multidirection signal from an Access Point or a Bridge. If you have multiple locations or buildings where you would like to integrate your wireless network, simply place the TL-ANT2415D in between the buildings with your Acess Point. It is most effective when placed at the top of buildings.

  • 15dBi omni-directional operation highly enlarges the wireless coverage
  • N female connector, compatible with most of the wireless equipments
  • Weather proof design, suitable for all weather condition
  • Provided mounting kits enable easy installation for various environments
  • Compatible with all the 802.11n/b/g products (2.4GHz)

Easy To Use

Installation of the TL-ANT2415D is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.

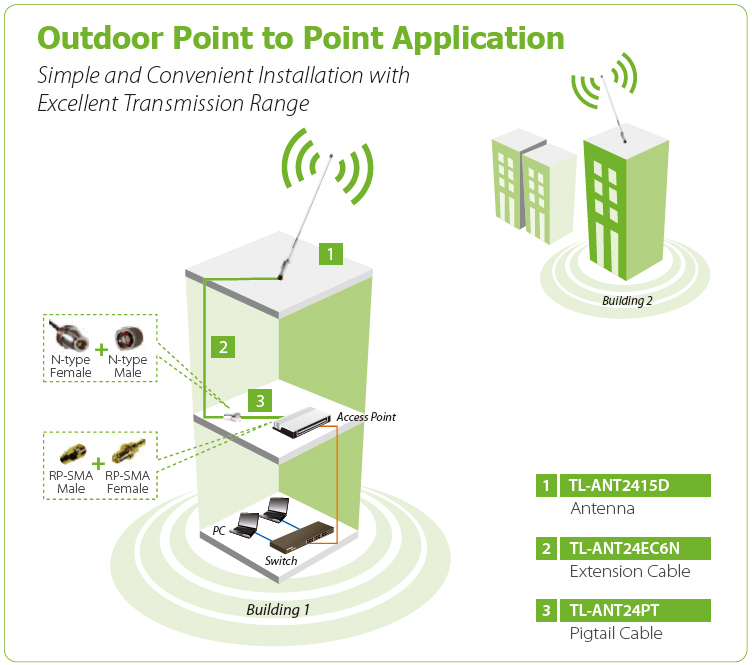

Diagram:

TL-ANT2415D Diagram

Specifications:


TL-ANT2415D Specifications
Frequency 2.4 ~ 2.5 GHz
S.W.R. <= 2.0
Antenna Gain 15 dBi
Polarization Linear
Impedance 50 Ohm
Application Outdoor
HBBW @ H-Plane 360 Degree Omni-Directional
HPBW @ E-Plane <= 9 Degree
Handle Power 20 Watt
Material of Radiator Cu & Zn-Alloy
Material of Plastic Body Glass Fiber
Cable Type RG 316D
Connector Type N Jack
Connector Pull Test >= 8 Kg
Operation Temperature - 40 °C ~ + 65 °C
Standards RoHS, WEEE
Package Contents
  • 15dBi Outdoor Omni-directional Antenna
  • Installation mounting kits
  • User Guide

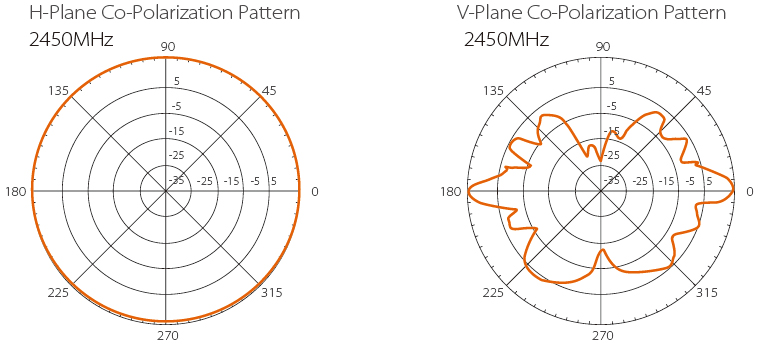

Radiation Patterns:

Radiation Patterns

Documentation:

Download the TP-LINK TL-ANT2415D Datasheet (PDF).
