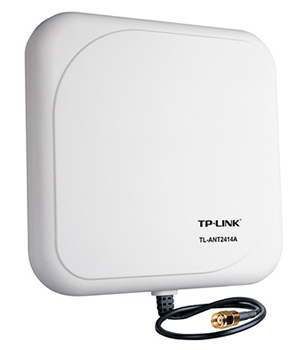

TP-LINK TL-ANT2414A / TL-ANT2414B
2.4GHz 14dBi Indoor/Outdoor Directional Antenna


TP-LINK TL-ANT2414A / TL-ANT2414B

Sorry, this product is no longer available. Please Contact Us for a replacement.


Overview:

TP-LINK 14dBi 2.4GHz Indoor& outdoor Directional Antenna, TL-ANT2414A & TL-ANT2414B are designed to strengthen the signal power, increase the wireless range, reduce dead spot, and give you reliability at high data rates for both indoor and outdoor usage. The TL-ANT2414A antenna offers the RP-SMA female connector guaranteeing wider compatibility with most of the wireless equipments. The TL-ANT2414B antenna offers the N female connector guaranteeing wider compatibility with most of the wireless equipments. Also, the weather proof design ensures that it can work normally for various demanding outdoor solutions. Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required.

  • 14dBi directional operation provides extended point to point connection or indoor and outdoor area coverage
  • Features 100cm(39.4 in) CFD-200 low loss cable for flexible deployment
  • RP-SMA Male connector, works with most of access points / wireless routers (TL-ANT2409A)
  • N female connector, works with most of access points / wireless routers (TL-ANT2409B)
  • Provides easy installation mounting kits

Easy To Use

Installation of the TL-ANT2414A & TL-ANT2414B are simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.

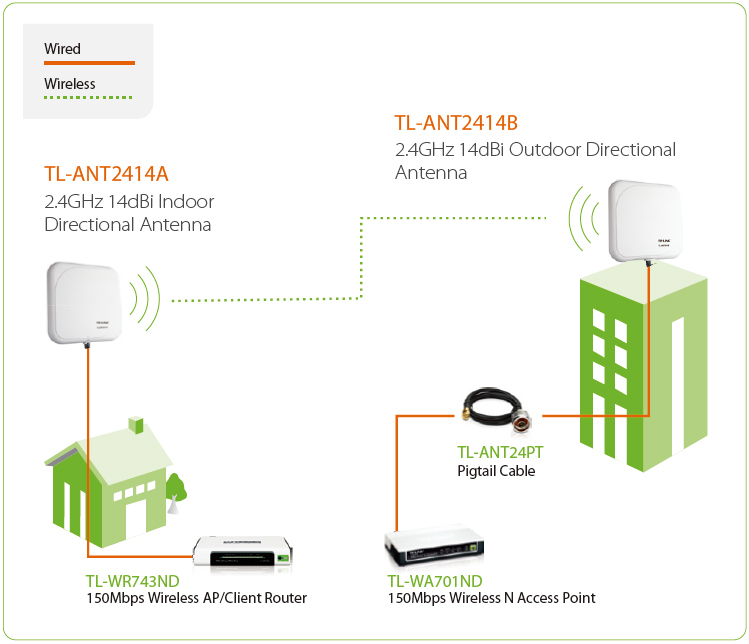

Diagram:

TL-ANT2414A / TL-ANT2414B Diagram

Specifications:


TL-ANT2414A / TL-ANT2414B Specifications
Frequency 2.4GHz~2.5GHz
Impedance 50 Ohms
Gain 14 dBi
VSWR (MAX.) 1.92 : 1 Max
Polarization Linear, Vertical
Beamwidth (HPBW)
  • Horizontal: 30°
  • Vertical: 30°
Connector
  • TL-ANT2414A: RP-SMA Female,
  • TL-ANT2414B: N-Type Female (Jack)
Cable 100cm CFD-200
Radiation Directional
Application Indoor/Outdoor
Mount Style Pole Mount / Wall Mount
Dimensions (L x W x H mm) 240 x 240 x 40 mm
Environment Operating Temperature: -10°C~60°C (14°F~140°F)
Storage Temperature: -40°C~80°C (-40°F~176°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Standards RoHS, WEEE
Package Contents
  • 14dBi Panel Directional Antenna
  • Installation mounting kits
  • User Guide

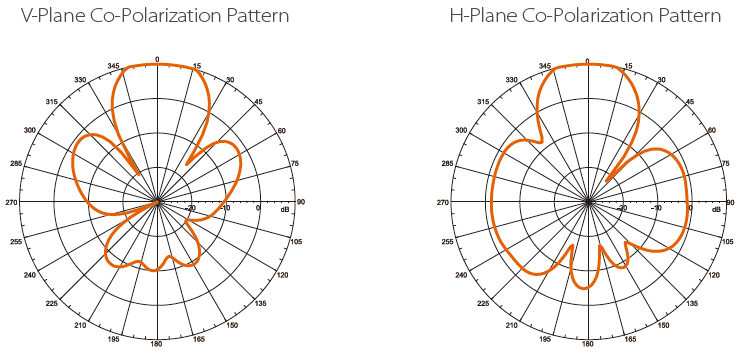

Radiation Patterns:

Radiation Patterns

Documentation:

Download the TP-LINK TL-ANT2414A / TL-ANT2414B Datasheet (PDF).
