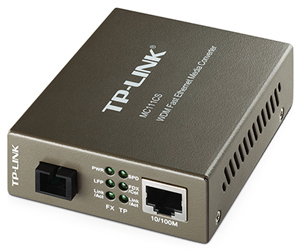

TP-LINK MC111CS
WDM Fast Ethernet Media Converter


TP-LINK MC111CS

Sorry, this product is no longer available. Please Contact Us for a replacement.


Overview:

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.4 miles).

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Adopts WDM technology, transmitting and receiving data on one single fiber

Features:

  • Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
  • Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extend fiber distance up to 20km(12.4 miles)
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply

Specifications:


MC111CS Specifications
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function
  • Adopts WDM technology
  • Half/Full-Duplex transfer mode for FX port
  • Full Duplex Flow Control (IEEE 802.3x)
  • Half Duplex Flow Control (Backpressure)
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Extends fiber distance up to 20km
Ports
  • 1 100M SC/UPC port
  • 1 100M RJ45 port (Auto MDI/MDIX)
Wave Length 1550nm Tx / 1310nm Rx
WDM TX 1550nm
WDM RX 1310nm
Network Media 10BASE-T
  • UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, FDX/Col, Link/Act, SPD
Dimensions ( W x D x H ) 3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 2.49W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Compare:


Model MC100CM MC110CS MC111CS MC112CS MC200CM MC210CS MC220L
Interface RJ45--SC RJ45--SC RJ45--SC RJ45--SC RJ45--SC RJ45--SC RJ45--SFP
Transmission Distance 2km 20km 20km 20km 0.55km(50/125um),
0.22km(62.5/125um)		 15km 0.55km /10km
Transmission Media Multi-mode Fiber,TP Single-mode Fiber,TP Single-mode Fiber,TP Single-mode Fiber,TP Multi-mode Fiber,TP Single-mode Fiber,TP Multi/Single-mode Fiber, TP
Wave Length 1310nm 1310nm 1550nmTX/ 1310nmRX 1310nmTX/ 1550nmRX 850nm 1310nm Depend on used SFP module

Documentation:

Download the TP-LINK Media Converters & Chassis Datasheet (PDF).
