TP-LINK EAP330
AC1900 Wireless Dual Band Gigabit Ceiling Mount Access Point


TP-LINK EAP330

Sorry, this product is no longer available. Please Contact Us for a replacement.


Overview:

Breakthrough Wi-Fi Speeds Ensure a True Business-Class Experience

The combination of next generation 802.11ac Wi-Fi and advanced MIMO and TurboQAM technology allows EAP Series devices to offer an unbeatable Wi-Fi experience.

  • The EAP330 provides the ultimate Wi-Fi experience, reaching speeds of up to 1.9Gbps, including 600 Mbps on the 2.4GHz band and 1300 Mbps on the 5GHz band.
  • The EAP330 provides speeds of 300Mbps and 867Mbps on the 2.4GHz and 5GHz bands respectively.

Excellent Wi-Fi Performance for Business Environments

Broadcom enterprise-class chipsets offers outstanding enterprise-grade performance, resulting in longer spans of stable operation and larger client capacities. The dedicated high-power amplifier, professional antenna, and well-designed RF shield ensure excellent wireless performance. Link aggregation combines two wired connections to double throughput and provide a redundant link for Internet access.*

Advanced RF Technologies Guarantee Optimal Performance

Airtime Fairness
Airtime Fairness

Airtime Fairness improves total Wi-Fi throughput by limiting access time for low speed devices.
Band Steering
Band Steering
Band Steering pushes dual-band devices to the wider and faster 5GHz band, improving overall network performance, especially in high client density environments.
Beamforming Technology
Beamforming Technology
Beamforming Technology achieves superior Wi-Fi bandwidth utilization and increases Wi-Fi range by creating efficient, highly targeted Wi-Fi connections

Business-Class Indoor Wi-Fi Solution

Auranet access points provide a business-class wireless network solution that is exible, manageable, secure, and easy-to-deploy. The free EAP Controller software allows users to manage hundreds of EAPs at multiple sites from a single location. The ability to control, adjust, and visualize the entire network from any connected PC makes centralized business Wi-Fi management more efcient than ever before. Auranet EAPs also feature captive portal and advanced RF management functions, which make them ideal for demanding, high-trafc environments, such as campuses, hotels, malls, and ofces.

Business-Class Indoor Wi-Fi Solution

Efficient Guest Authentication
Efficient Guest Authentication

Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

Flexible Deployment

The EAP's low profile design and easy mount chassis make it easy to install the device on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP series APs support Power over Ethernet (PoE), making deployment effortless and flexible.

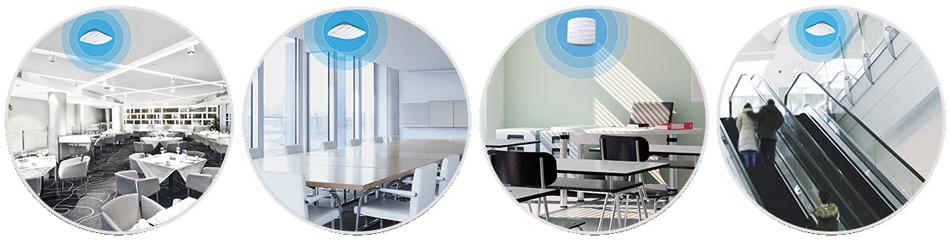

Applicable to Multi-user Environment

With breakthrough 11AC speed, business-grade Wi-Fi performance, easy-to-use Centralized management software, efficient captive portal function, low profile design and PoE support feature, the new EAP 320/330 series are more capable of serving the high-density, most demanding business environments, including schools, hotels, and enterprises.

Applicable to Multi-user Environment

Features:

  • Speeds of up to 1.9Gbps over concurrent dual band 802.11ac Wi-Fi with MIMO and TurboQAM technologies
  •  Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications
  •  Link aggregation joins two gigabit Ethernet ports to break the bottleneck in network backhaul capacity
  •  Free EAP Controller Software lets administrators easily manage hundreds of EAPs
  •  Captive portal provides a convenient method for guest authentication
  •  Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation
  • 1900Mbps wireless data rate for uninterrupted wireless connection
  • Airtime Fairness, Beamforming and Band Steering technology provide optimal RF performance for best Wi-Fi experience in High-Density environment
  • Link aggregation between two Gigabit Ethernet ports breaks the bottleneck in network backhaul capacity
  • Free Controller Software for easy centralized management of hundreds of EAPs
  • Power over Ethernet(802.3at)Support for convenient and affordable installation
  • Captive portal provides one convenient method of authentication for WiFi guests
  • Simple mounting design makes easy to install on any wall or ceiling surface
  • Rate limit on per SSID to restrict the bandwidth of each client
  • Load balance ensures large numbers of users have smooth network experiences in high density business networks
  • Access Control restricts or only allows the client to access the specified network segment
  • Reboot Schedule enables all the APs to reboot automatically at a specified time
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Multi-SSID divides multiple wireless network for different users
  • Compatible with 802.11 a/b/g/n/ac products
  • Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
  • Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
  • Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

EAP Controller Software:

TP-LINK's free EAP Controller Software allows users to easily manage hundreds of TP-LINK EAPs in multiple sites with the controller in a single location. The ability to control, adjust, and visualize the entire network from any connected PC makes centralized business Wi-Fi management more efficient and cost-effective than ever before. The EAP Controller Software integrates seamlessly with TP-LINK's EAP series devices to create cost-effective business Wi-Fi solutions that offer ultimate performance.

Centralized Management Platform

  • Monitor and manage hundreds of EAPs in a single or multiple sites
  • Configure and automatically synchronize unified wireless settings to all EAPs in the network
  • Upload floor plans to visualize and optimize network resource deployment
  • Make network administration more effective and efficient with batch firmware updates

Centralized Management Platform

Manage Multiple Sites with the Centralized Controller in a Single Location

TP-LINK EAP controller enables the network administrator to monitor and manage hundreds of EAPs of multiple sites from any connected PC within the network. This function allows for great wireless scalability and remote network management, saving time and no extra IT staff fee, ideal for multiple distributed deployments such as hotel chain, business with distributed offices.

Manage Multiple Sites with the Centralized Controller in a Single Location

Intuitive Real-Time Monitoring

  • View the real-time traffic status of each EAP, including the number of clients and volume of data usage
  • Use built-in data visualizations to quickly analyze network traffic statistics for connected APs
  • Monitor data from each EAP and track user activity to better understand traffic patterns and enhance network efficiency

Intuitive Real-Time Monitoring

Captive Portal - Customizable Guest Authentication

The powerful Guest Authentication functionality makes it easy to customize Guest Wi-Fi settings. Administrators will be able to control guest access by designing a unique authentication page and establishing a voucher system to limit the duration of use for each client. Guest Authentication also supports the creation of "Operator" accounts, which have permission to manage the guest network without having access to other EAP administrative features.

Captive Portal - Customizable Guest Authentication

Specifications:


EAP330 Specifications
Hardware Features
Interface Gigabit Ethernet (RJ-45) Port *2
(ETH1 Support IEEE802.3at PoE)
Button Reset
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 14 W
Dimensions (W x D x H) 8.7 x 7.6 x 1.4 in. (220.5 x 193.5 x 36.5mm)
Antenna Type Internal Omni
2.4GHz: 3* 6dBi
5GHz: 3*7dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
Wireless Features
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Transmit Power
  • CE:
    <20dBm(2.4GHz)
    <23dBm(5GHz)
  • FCC:
    <27dBm
Wireless Functions
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Airtime Fairness
  • Beamforming
  • Band Steering
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Management
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Others
Certification CE, FCC, RoHS
Package Contents
  • AC1900 Wireless Dual Band Gigabit Access Point EAP330
  • Power Adapter
  • Mounting Kits
  • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Views:

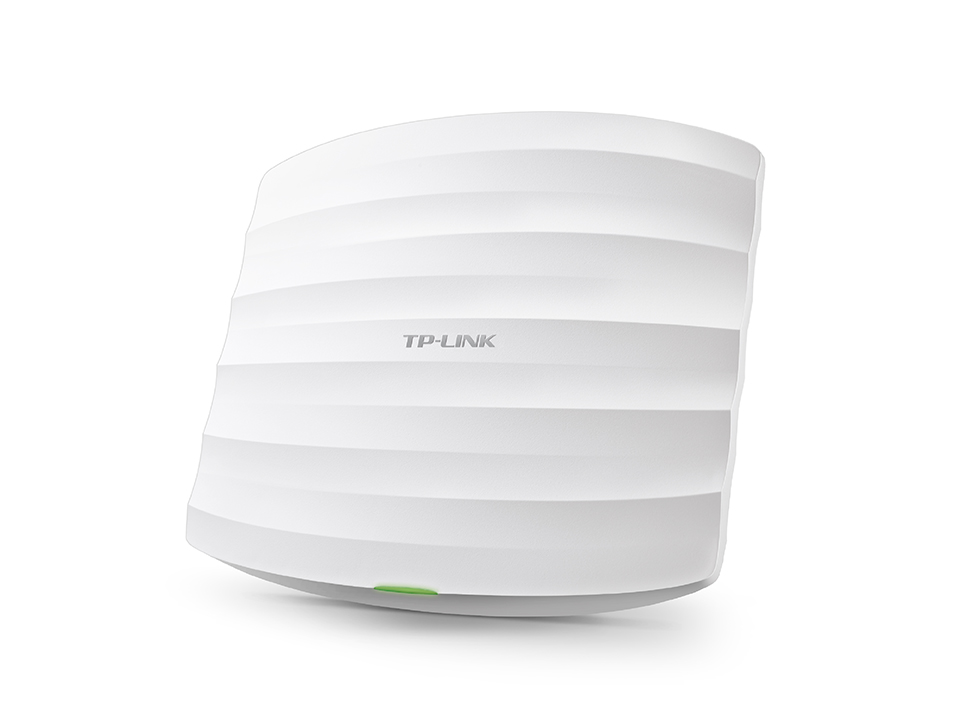

Front View
Front View

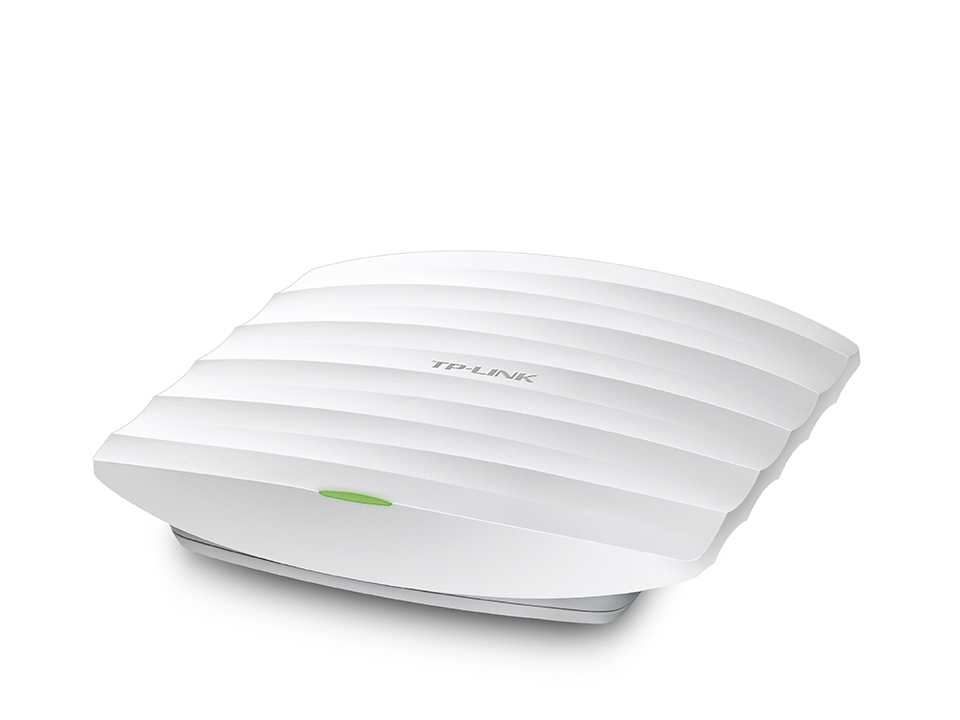

Left Angle View
Left Angle View

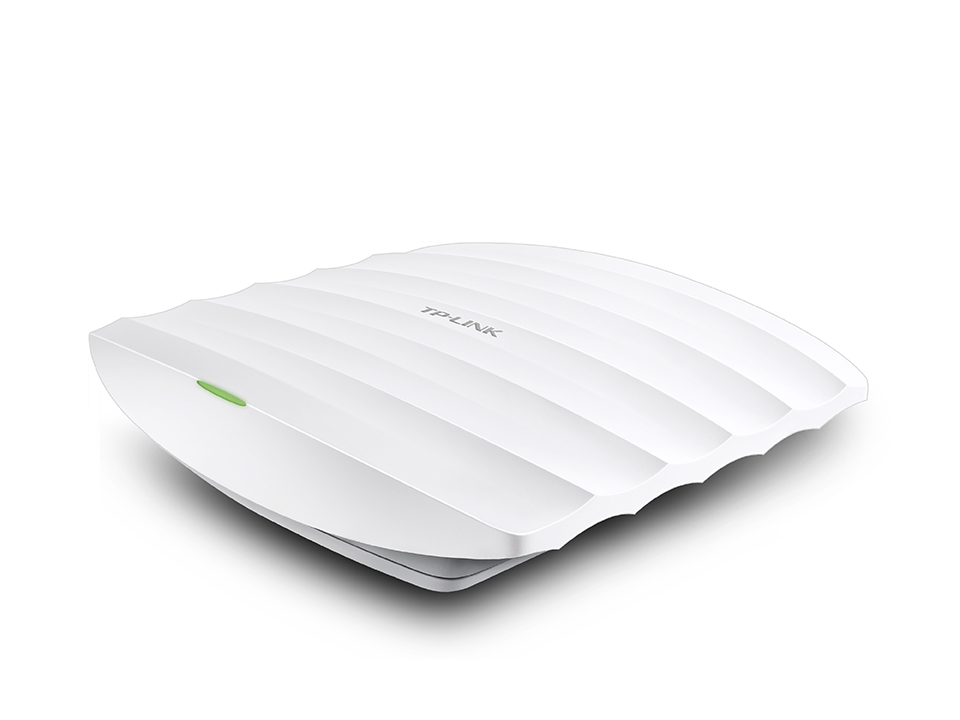

Side Angle View
Side Angle View

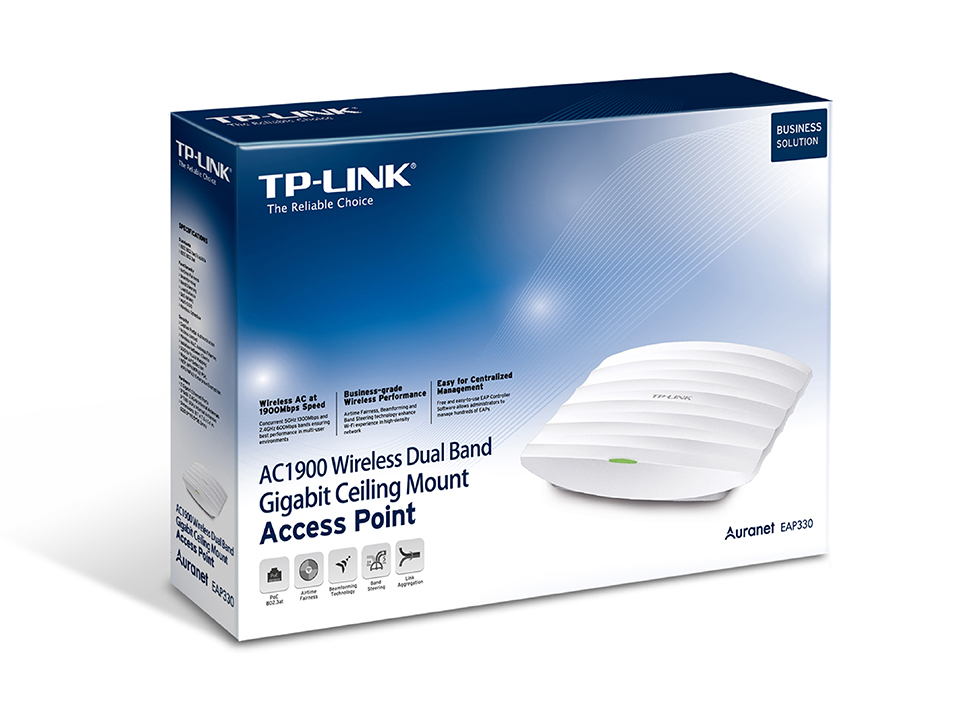

Package View
Package View


Compare:

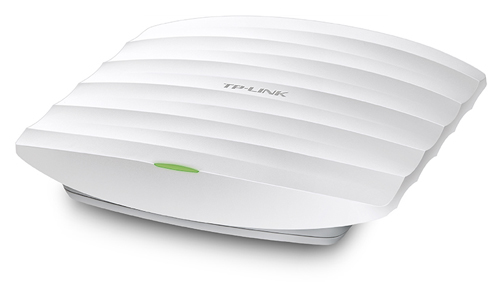

  Auranet EAP330 Auranet EAP320 Auranet EAP220 Auranet EAP120 Auranet EAP110
Product Name AC1900 Wireless Dual Band Gigabit Access Point AC1200 Wireless Dual Band Gigabit Access Point N600 Wireless Dual Band Gigabit Access Point 300Mbps Wireless N Gigabit Access Point 300Mbps Wireless N Access Point
Wireless Throughput 2.4GHz: 600Mbps
5GHz: 1300Mbps
2.4GHz: 300Mbps
5GHz: 867Mbps
2.4GHz: 300Mbps
5GHz: 300Mbps
2.4GHz: 300Mbps 2.4GHz: 300Mbps
Ethernet Port Gigabit Port*2 Gigabit Port*1 Gigabit Port*1 Gigabit Port*1 Gigabit Port*1
Internal Antennas 2.4GHz: 3*6dBi
5GHz: 3*7dBi
2.4GHz: 2*6dBi
5GHz: 2*7dBi
2.4GHz:2*4dBi
5GHz: 2*4dBi
2.4GHz:2*4dBi 2.4GHz:2*3dBi
PoE Mode IEEE 802.3at IEEE 802.3at IEEE 802.3af IEEE 802.3af IEEE 802.3af
Captive Portal
Airtime Fairness - - -
Beamforming - - -
Band Steering - -
Load Balance
