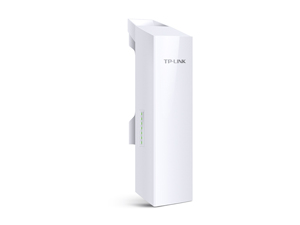

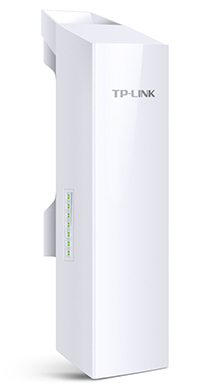

TP-LINK CPE510
5GHz 300Mbps 13dBi Outdoor CPE
Overview:
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30°C (-22°F) to +70°C (158°F).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

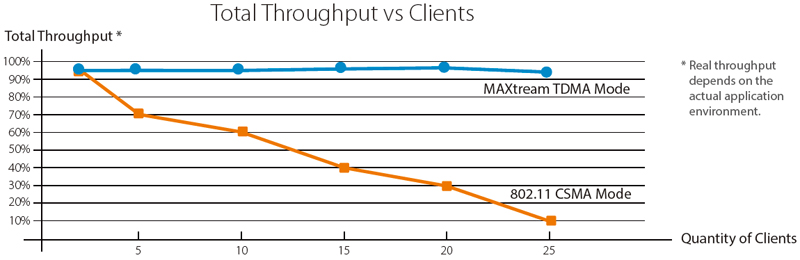

Advanced TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
Pharos series also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, rmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more speci c con gurations.

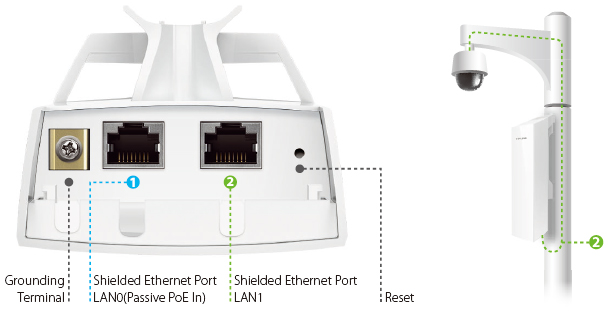

Professional Outdoor Design
- Weatherproof enclosure with pole mounting design
- Secondary Ethernet port with software enabled PoE output allows for seamless IP camera connectivity.
- Shielded Ethernet ports and grounding terminal provide double protections against ESD attacks

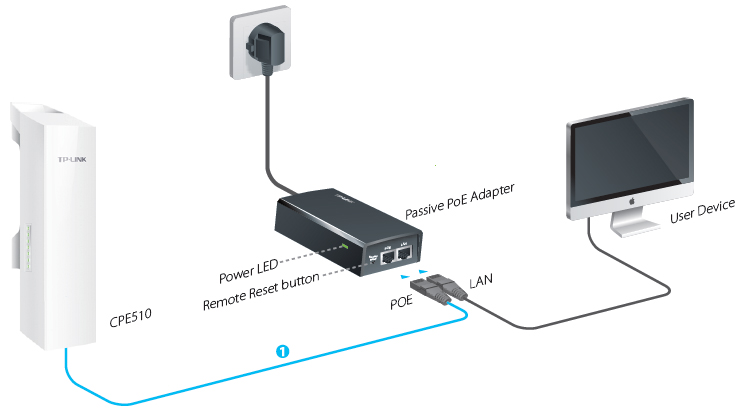

Easy Deployment and Maintenance
Passive PoE adapter makes installation easier, and its Remote Reset button allows for device to be reset remotely from power supply location.
Features:
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimization for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
- Outdoor stabilized enclosure with IPX5 waterproof certification
- Dual Ethernet ports and grounding terminal integrated
- 6000V Lightning Protection, 15KV ESD Protection
- Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
- Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
- Selectable bandwidth of 5/10/20/40MHz
- Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
- Easy antenna alignment with wireless signal quality indicators via Web interface

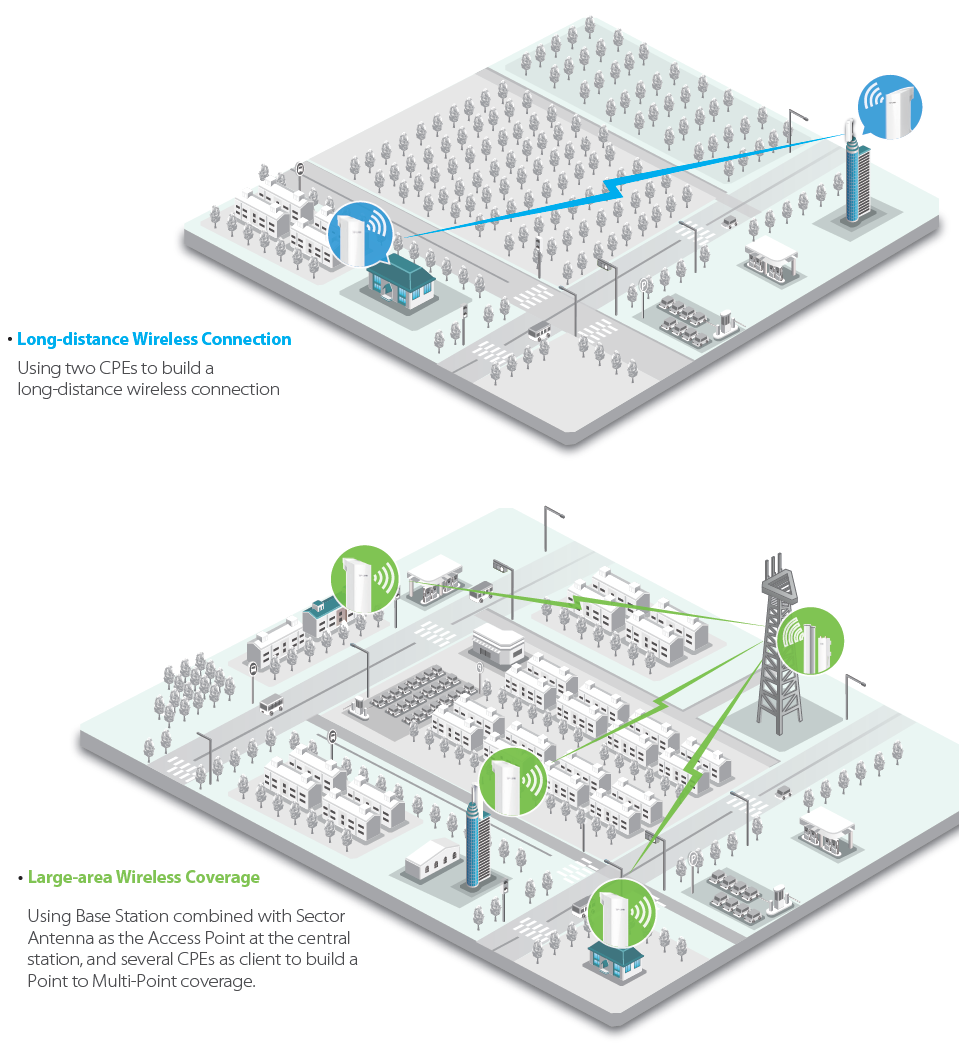

Typical Applications:
TP-LINK’s Outdoor CPE is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is exible and ideal for point-to-point and point-to-multipoint applications.
Specifications:
| CPE510 Specifications | |
|---|---|
| Hardware Features | |
| Processor | Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface |
|
| Power Supply |
|
| Dimensions (W x D x H) | 224 x 79 x 60 mm |
| Power Consumption | 13 Watts Max |
| Antenna Type |
|
| Protection |
|
| Enclosure |
|
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
|
| Frequency | 5.15~5.85GHz |
| Transmission Power | 27dBm/500mw (Adjustable power by 1dBm) |
| Software Features | |
| Wireless Configurations |
|
| Management |
|
| System Tools |
|
| System-level Optimizations |
|
| PoE Adapter Features | |
| Interfaces |
|
| Efficiency | >80% |
| Button | Remote Reset Button |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| Power Status LEDs |
|
| Output |
|
| Input Voltage | 100VA~240VAC @ 50Hz~60Hz |
| Dimensions (W x D x H) | 110 x 57 x 33.5mm |
| Input Current | 0.8A Max @ 100VAC |
| Input | 100-240VAC, 50/60Hz |
| Output Voltage | 24VDC (+4,5pins; -7,8pins) |
| Others | |
| Certification | CE, FCC, RoHS, IPX5 |
| Package Contents |
|
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Environment | Operating Temperature: -30°C~70°C (-22°F~158°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
RF Performance:
| 802.11a | 802.11n | ||||
|---|---|---|---|---|---|
| Data Rates | Tx Power | Rx Sensitivity | Data Rates | Tx Power | Rx Sensitivity |
| 1Mbps | 27 | -95 | MCS0 | 27 | -93 |
| 2Mbps | 27 | -83 | MCS1 | 27 | -90 |
| 5.5Mbps | 27 | -76 | MCS2 | 27 | -88 |
| 11Mbps | 27 | -75 | MCS3 | 27 | -83 |
| MCS4 | 27 | -80 | |||
| MCS5 | 27 | -76 | |||
| MCS6 | 26 | -74 | |||
| MCS7 | 25 | -73 | |||
| MCS8 | 27 | -93 | |||
| MCS9 | 27 | -90 | |||
| MCS10 | 27 | -88 | |||
| MCS11 | 27 | -83 | |||
| MCS12 | 27 | -80 | |||
| MCS13 | 27 | -76 | |||
| MCS14 | 27 | -74 | |||
| MCS15 | 27 | -73 | |||
Antenna:
| Antenna Features | |
|---|---|
| Gain | 13dBi |
| Beamwidth | 45° (H-Plane) / 30° (E-Plane) |
| VSWR | 1.6 Max |
| Polarizations | Horizontal/Vertical |
| Cross-pol Isolation | 18 dB Min |
| H-Pol | ||
|---|---|---|

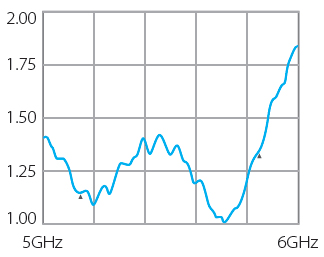

Return Loss |
H-Plane Pattern |
E-Plane Pattern |
| V-Pol | ||

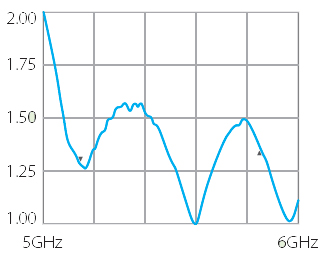

Return Loss |
H-Plane Pattern |
E-Plane Pattern |
Views:

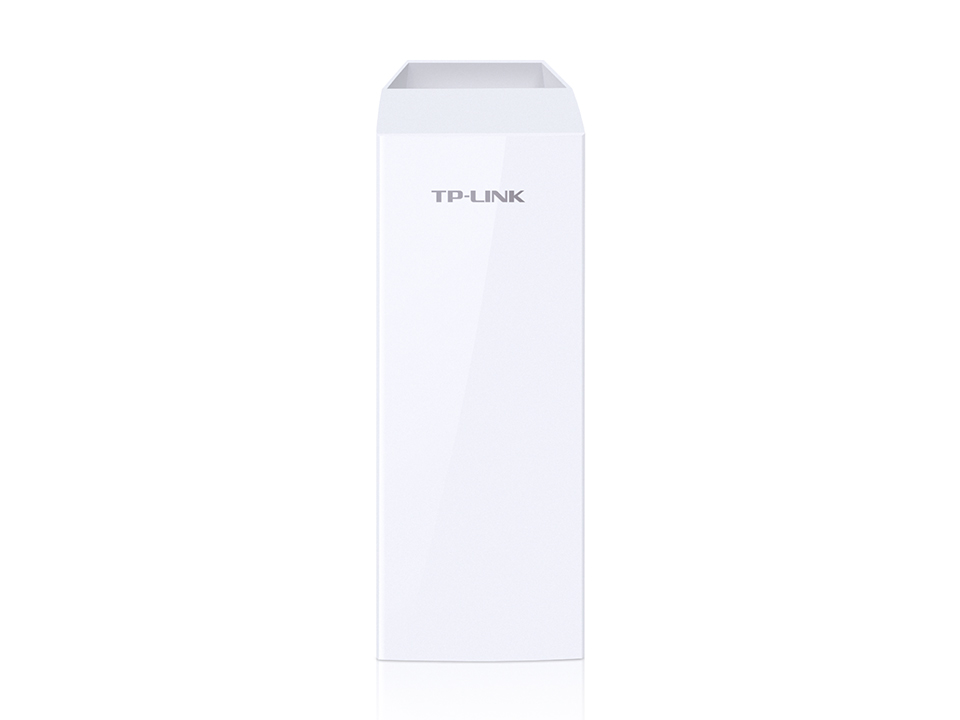

 Front View |

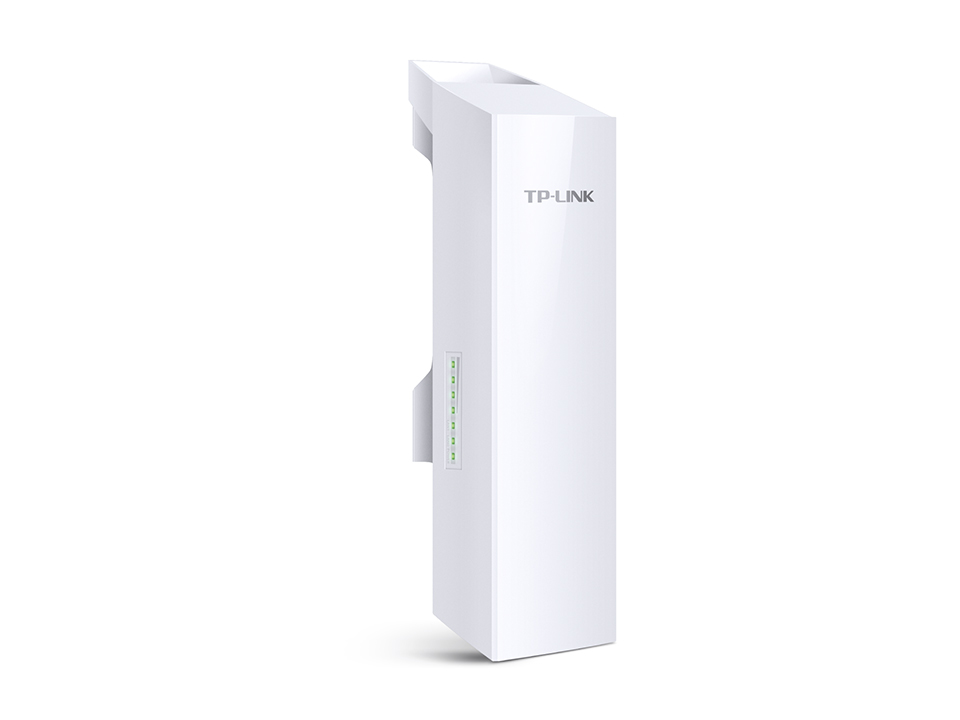

 Right Angle View |

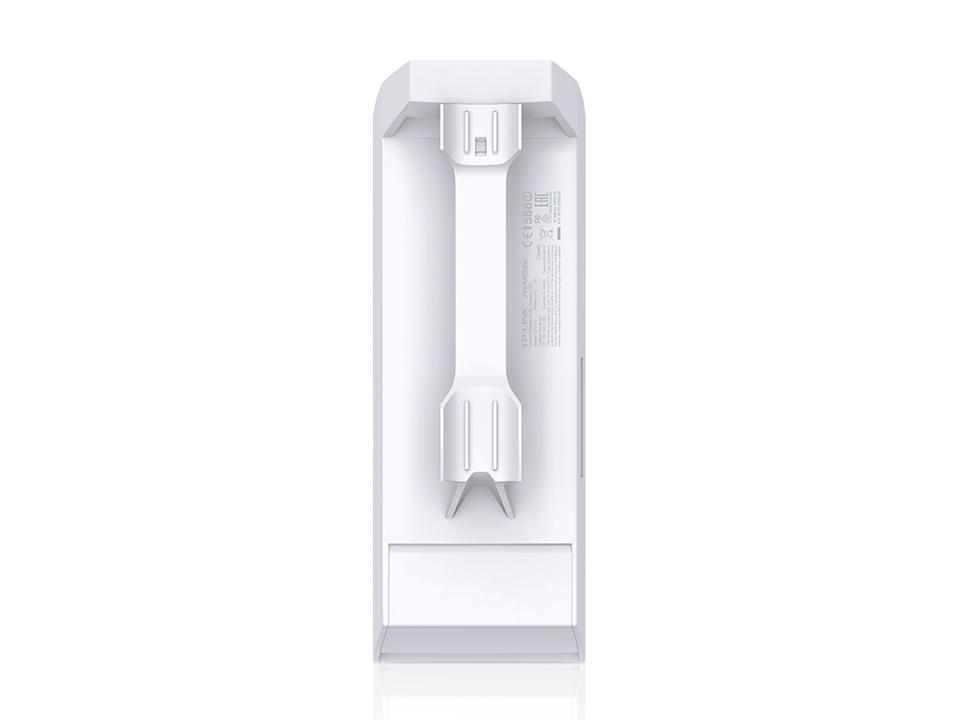

 Rear View |
Compare:
| CPE520 | CPE510 | CPE220 | CPE210 | TL-WA7510N | TL-WA7210N | |
|---|---|---|---|---|---|---|
| Wireless Performance | ||||||
| Wireless Speed | 5GHz 300Mbps | 5GHz 300Mbps | 2.4GHz 300Mbps | 2.4GHz 300Mbps | 5GHz 150Mbps | 2.4GHz 150Mbps |
| Transmit Power | 27dBm | 23dBm | 30dBm | 27dBm | 27dBm | 27dBm |
| Antenna | 16dBi | 13dBi | 12dBi | 9dBi | 15dBi | 12dBi |
| MIMO | - | - | ||||
| Coverage Range | 20km+ | 15km+ | 13km+ | 5km+ | 5km+ | 5km+ |
| Hardware | ||||||
| Compatibility | 802.11a/n | 802.11a/n | 802.11b/g/n | 802.11b/g/n | 802.11a/n | 802.11b/g/n |
| External Antenna Interface | - | - | - | - | 1 x RP-SMA | 1 x RP-SMA |
| Weatherproof Enclosure | (IPX5) | (IPX5) | (IPX5) | (IPX5) | ||
| Dual Ethernet Ports | - | - | ||||
| PoE Passthrough | - | - | ||||
| Grounding Terminal | ||||||
| Lightning Protection over Ethernet Cable | - | - | ||||
| ESD Protection | 15kV | 15kV | 15kV | 15kV | 15kV | 15kV |
| Lightning Protection | 6kV | 6kV | 6kV | 6kV | 4kV | 4kV |
| Power Supply | 24V Passive PoE Adapter | 24V Passive PoE Adapter | 24V Passive PoE Adapter | 24V Passive PoE Adapter | 12V Power Adapter + Passive PoE Injector | 12V Power Adapter + Passive PoE Injector |
| Software | ||||||
| Operation Modes | AP / Client / Bridge / Repeater / AP Client Router (WISP Client) / AP Router Mode | |||||
| Channel Bandwidth | 5/10/20/40MHz | 5/10/20/40MHz | 5/10/20/40MHz | 5/10/20/40MHz | 20/40MHz | 20/40MHz |
| Transmit Power Control | Stepping 1dBm | Stepping 1dBm | Stepping 1dBm | Stepping 1dBm | Stepping 3dBm | Stepping 3dBm |
| Antenna Alignment | - | - | ||||
| Throughtput Monitors | - | - | ||||
| Spectrum Analyzer | - | - | ||||
| Iperf Speed Test Tool | - | - | ||||
| Pharos Control Supported (Central Network Management Application) |
- | - | ||||
Documentation:
Download the TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor CPE Datasheet (PDF).
