TP-LINK Archer AX6000
Archer AX6000 Next-Gen Wi-Fi Router

TP-LINK Next-Gen Wi-Fi Router
USA: FREE Ground ShippingTP-LINK Archer AX6000 Next-Gen Wi-Fi Router
#5TY931
Our Price: $349.99

More pricing below, click here!

Overview:

Faster. Broader. Higher Capacity.

The Archer AX6000 is TP-Link’s first router with Wi-Fi 6 – based on the next generation 802.11ax Wi-Fi technology. Take your Wi-Fi to the next level while being backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.





  • 4x Higher Performance - The new Downlink and Uplink MU-MIMO and OFDMA achieve a performance boost 4× that of 802.11ac
  • 3x Faster Speed - 1024 QAM and Long OFDM Symbol boost overall speeds up to an incredible 6000 Mbps
  • 4x Larger Capacity - OFDMA greatly increases the number of connected devices by assigning channels to more devices simultaneously
  • Boosted Coverage - Beamforming and RangeBoost technology provide stronger, more reliable connections

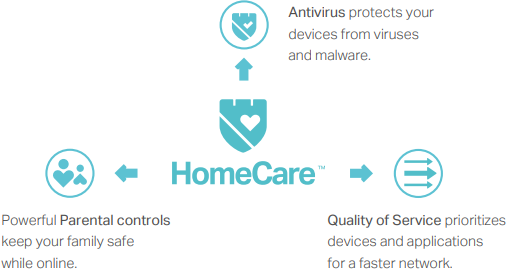

Homecare™ for Comprehensive Home Threat Protection

Defend your system from malicious threats that can sneak through downloads and file sharing. TP-Link HomeCareTM, powered by Trend MicroTM, protects every device from the latest cyber threats with powerful security, built-in antivirus, and cutting-edge intrusion prevention, comprehensively creating a highly protected smart home environment.



Homecare™ for Comprehensive Home Threat Protection

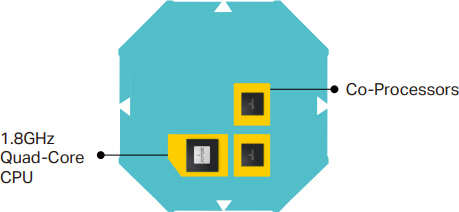

1.8GHz 64-bit Quad-Core CPU

An extremely powerful 1.8GHz 64-bit quad-core processor, two distinct co-processors, and 1GB of RAM work tirelessly to power your network.



1.8GHz 64-bit Quad-Core CPU

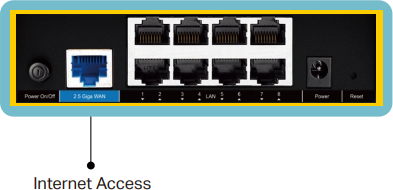

2.5Gbps WAN Port

Archer AX6000 provides a 2.5Gbps WAN port to make fully use of the over 1Gbps internet access, boost the whole internet throughput.



2.5Gbps WAN Port



Features:

Speed

  • AX Tech – 802.11ax (also known as Wi-Fi 6) features advanced technologies including OFDMA, MU-MIMO and 1024QAM, drastically increasing the speed and efficiency of the entire network
  • Ultimate Wireless Speed – 1148 Mbps on 2.4GHz (802.11ax) + 4804 Mbps on 5GHz (802.11ax)
  • 1.8GHz 64-bit Quad-Core CPU – Balances the demands of your devices and improves NAT throughput to keep connections fast and continuous
  • Link Aggregation – Doubles the connection speeds to an external storage devices for faster streaming and data backup
  • Accelerated VPN Access – Securely connects to private networks providing 5× faster OpenVPN and PPTP VPN connections

Wi-Fi Range

  • Ultimate Range Wi-Fi – 8 high-gain external antennas deliver a Wi-Fi signal to every corner of your home, making all of your connections more efficient and stable.
  • Range Boost – Greatly enhances receiving sensitivity to deliver a more stable router-client link
  • Beamforming Technology – Concentrates Wi-Fi signals towards individual devices to ensure stronger connections

Reliability

  • Airtime Fairness – Balances bandwidth of connected devices to improve overall throughput and efficiency
  • Smart Connect – Intelligently switches each device’s connection to the optimum available Wi-Fi band
  • Easy Bandwidth Management – Advanced QoS makes it easier for you to manage the bandwidth of connected devices or applications

Ease of Use

  • Intuitive Web UI – Ensures quick and simple Installation without hassle
  • Fast Encryption – One-touch WPA wireless security encryption with the WPS button
  • Easy On/Off – Turn on/off wireless radio using the Wi-Fi button; turn on/off LEDs using the LED button
  • Power On/Off – Conveniently power on or off your router as required
  • Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android and iOS device
  • Bluetooth Onboarding – Open phone's bluetooth and quickly sets up the network via the Tether app

Security

  • Antivirus – Protects all connected devices in your home from viruses and malware
  • Guest Network – Keeps your main network secure by creating a separate network for friends and visitors
  • Access Control – Establishes a whitelist or blacklist to allow or restrict certain devices to access the internet
  • Parental Controls – Restricts internet access time and contents for children devices
  • Encryptions for Secure Network – WPA-PSK and WPA2-PSK encryptions provide active protection against security threats

Easy Sharing

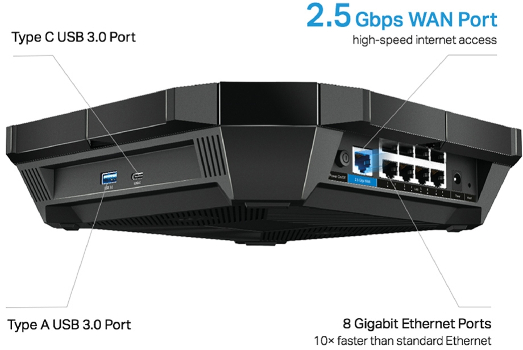

  • Type C & Type A USB 3.0 Ports – Provide data transfers up to 10× faster than a traditional USB 2.0 port.
  • Built-in Media Server – Allows you to play music, watch videos and view photos from any device on your network

Specifications:

Lightning-Fast Wired Connections

HARDWARE FEATURES
Memory 1GB RAM and 128MB Flash
Interface 8 1G/100M/10M LAN Ports,
1 2.5G/2G/1G/100M WAN Port
1 USB-A 3.0 Port + 1 USB-C 3.0 Port
Button Wi-Fi On/Off Button, Reset Button, WPS Button, Power On/Off Button, LED on/off Button
External Power Supply 12V/4A
Dimensions ( W x D x H ) 10.3×10.3×2.4in (261.2×261.2×60.2mm)
Antenna 8 High-Performance External Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5GHz
IEEE 802.11ax/n/b/g 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: 4804Mbps(802.11ax)
2.4GHz: 1148Mbps(802.11ax)
compatible with 802.11a/b/g/n/ac Wi-Fi standards
Reception Sensitivity 5GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
Wireless Functions Enable/Disable Wireless Radio, Guest network, DFS, MU-MIMIO, OFDMA
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz)
FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
Guest Network 2.4GHz guest network x 1, 5GHz guest network x 1
SOFTWARE FEATURES
Quality of Service Advanced Qos powered by TrendMicro
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)
Management Advanced Parental control powered by TrendMicro, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP, TP-Link
VPN Server PPTP, OpenVPN
OTHERS
Certification FCC, CE, RoHS
Package Contents Wireless Router Archer AX6000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Documentation:

Download the TP-LINK Archer AX6000 Next-Gen Wi-Fi Router Datasheet (PDF).
